200Kw Geocell Production Line 1220mm Wide HDPE Sheet Extruders

HDPE sheet extrusion machine for Geocell
HDPE sheet production line for Geocell
HDPE sheet production line for Geocell
PP sheet / board extrusion machine / production line
HDPE / PP / ABS sheet extrusion machine / production line
HDPE sheet extrusion production line used for Geocell
PP sheet / board extrusion production line
PP/PE/ABS Sheet/Board Production Line
PP thermo forming sheet production line
Geocell sheet production line
PE sheet production line for geocell

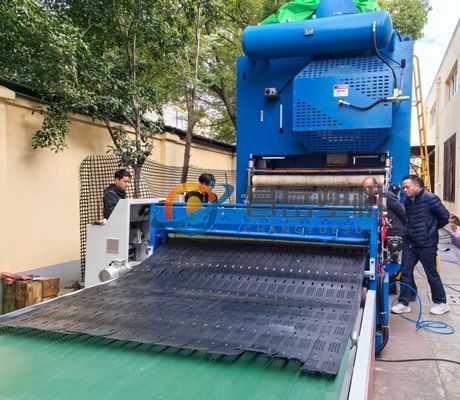

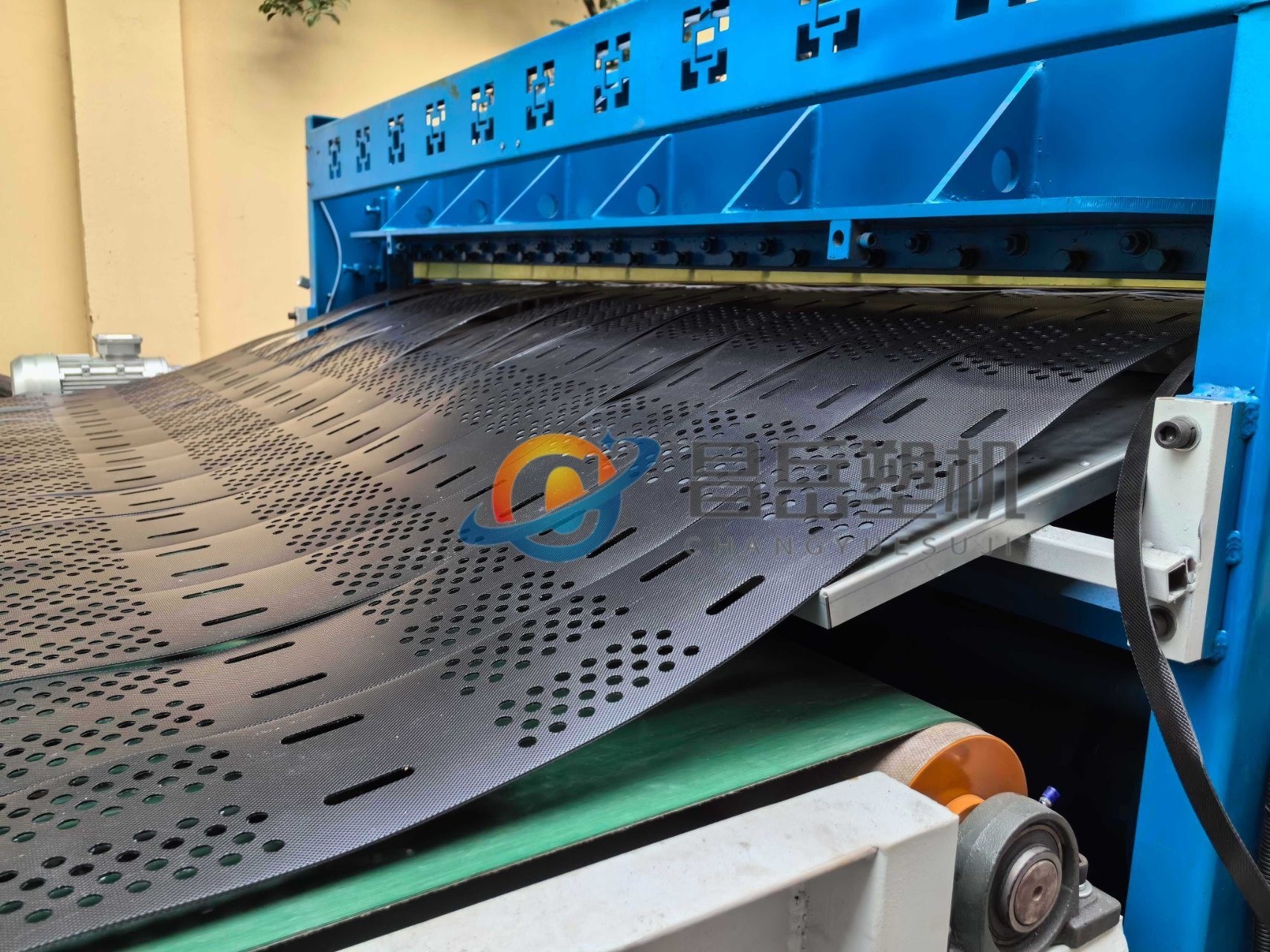

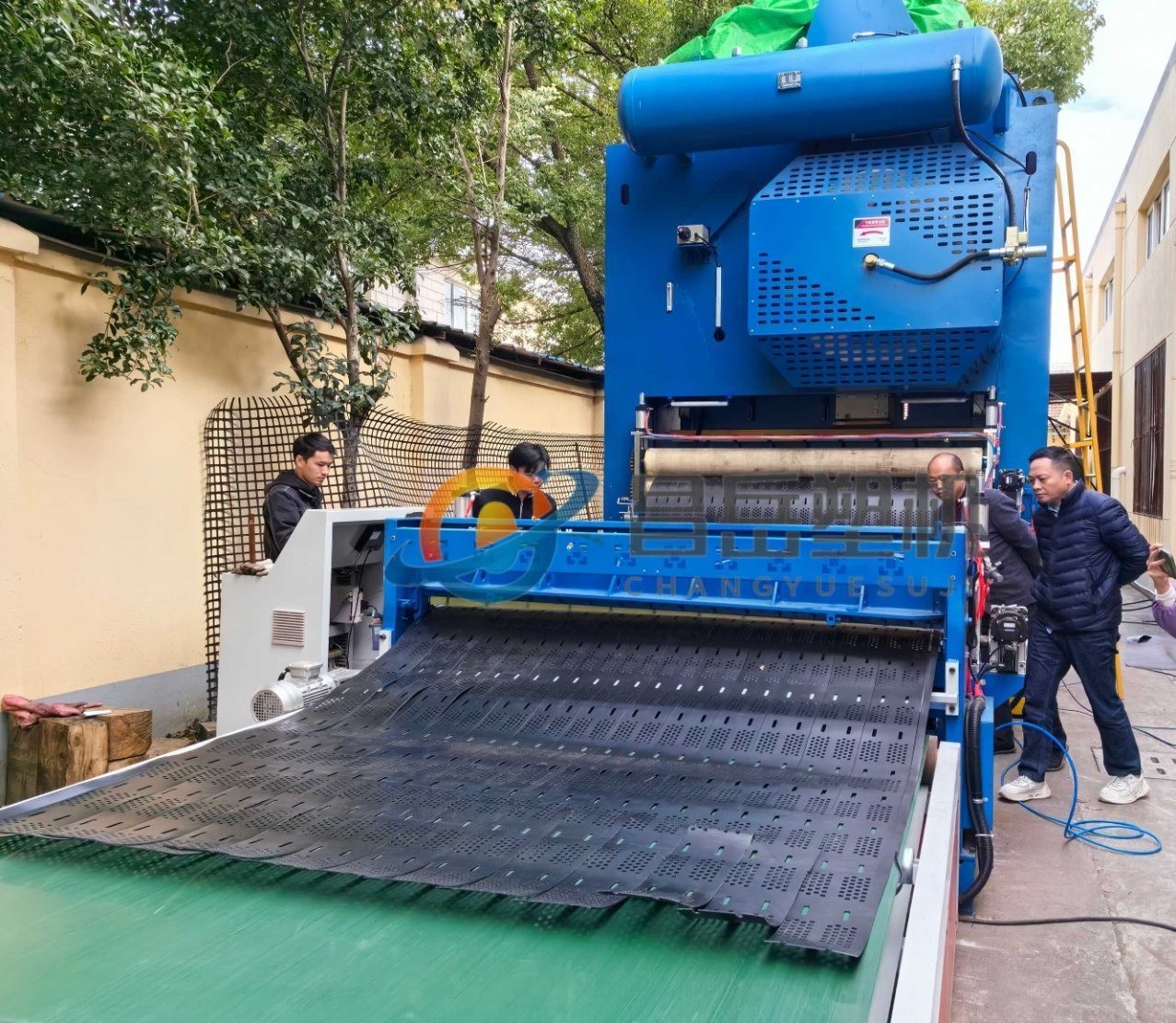

geocell production line with online punching machine
geocell making machine


1. drier & mixer   volum: 1000 kg / 1500 kg

2. material:              SS

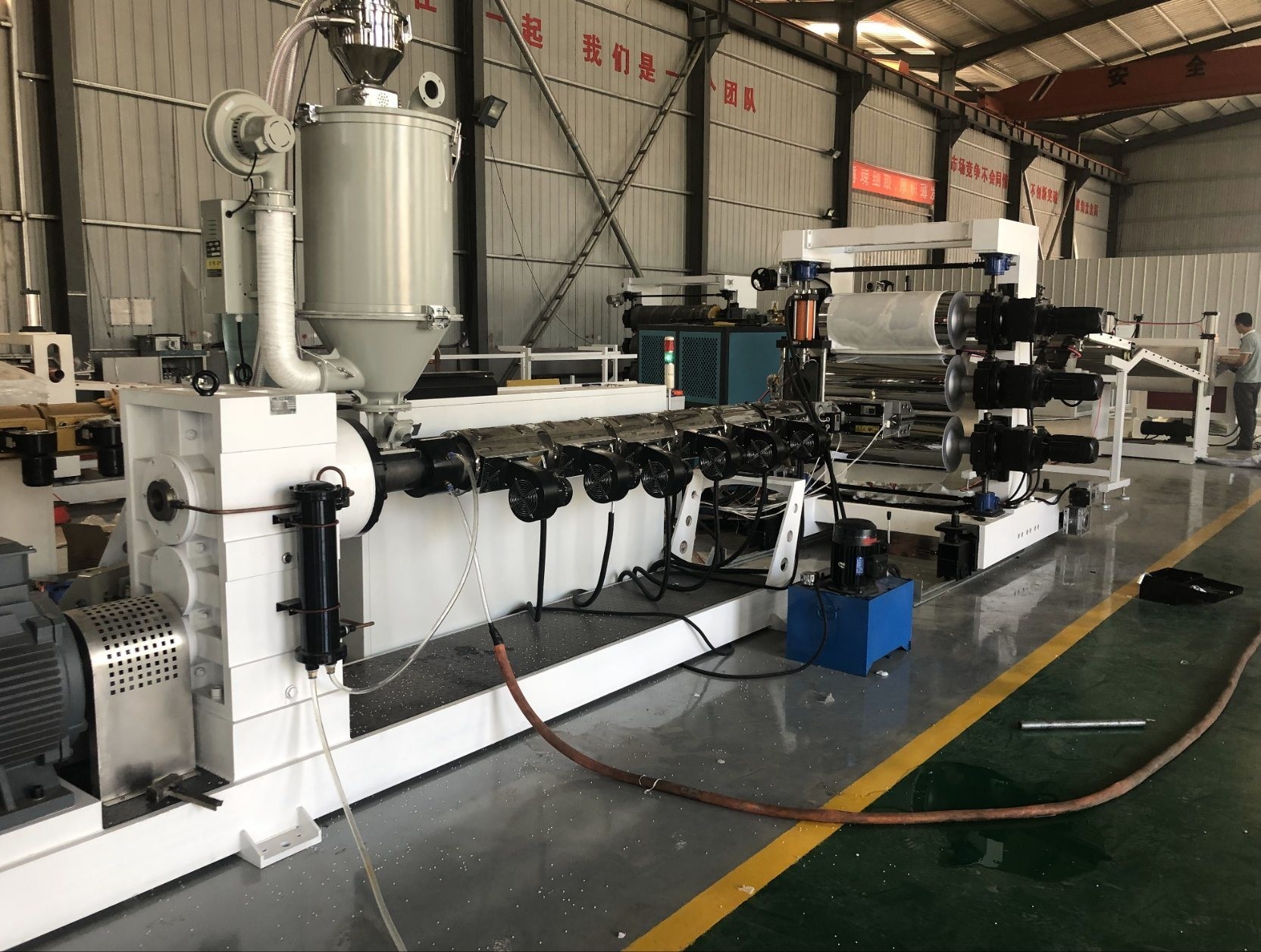

1. vacuum auto loader

2. single screw extruder

3. one extruder or two extruder for single / multilayer sheet

4. exhausted screw

5. hydraulic mesh changer / filter & hydraulic station

6. T die:                    brand:   JC times T die

7. sheet width:          600-300 mm

8. sheet thickness:   0.5-5 mm

9. main motor:         Siemens Beide

10. melting pump if needed

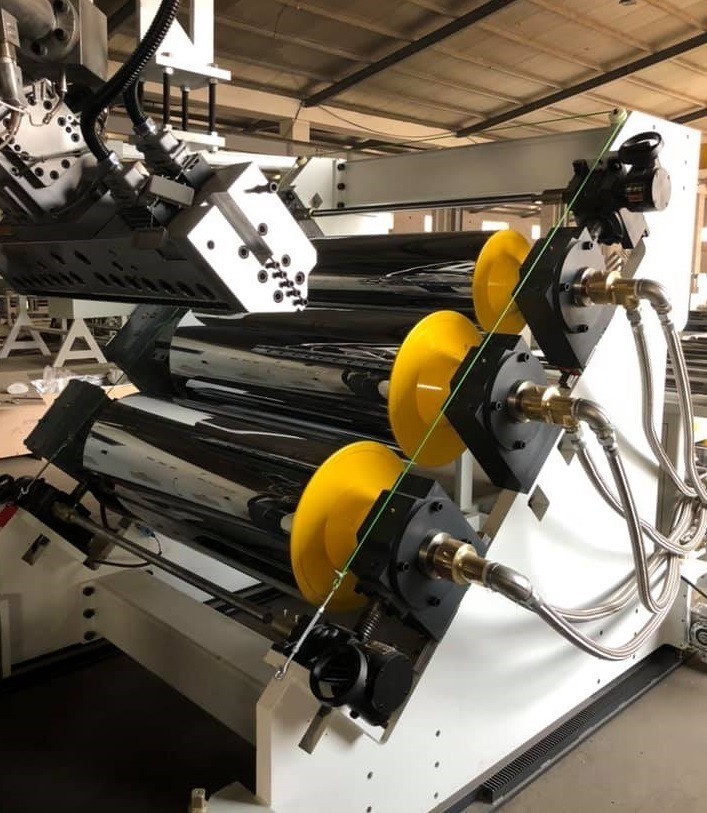

1. vertical three roller calender  / 45degreee calender

2. roller diameter:     400 / 450 / 500 mm

3. flange type rotating jointor

4. roller temperature controlling unit

5. roller mirror treatment

6. Surface hardness:  HRC55-58

7.Surface roughness:  Ra<=0.025um

8. up & down movement by motor

9. the rollers can do embossment

cooling bracket and slitting machine

1.cooling bracket length:   18 m

2. transmission rollers:      SS

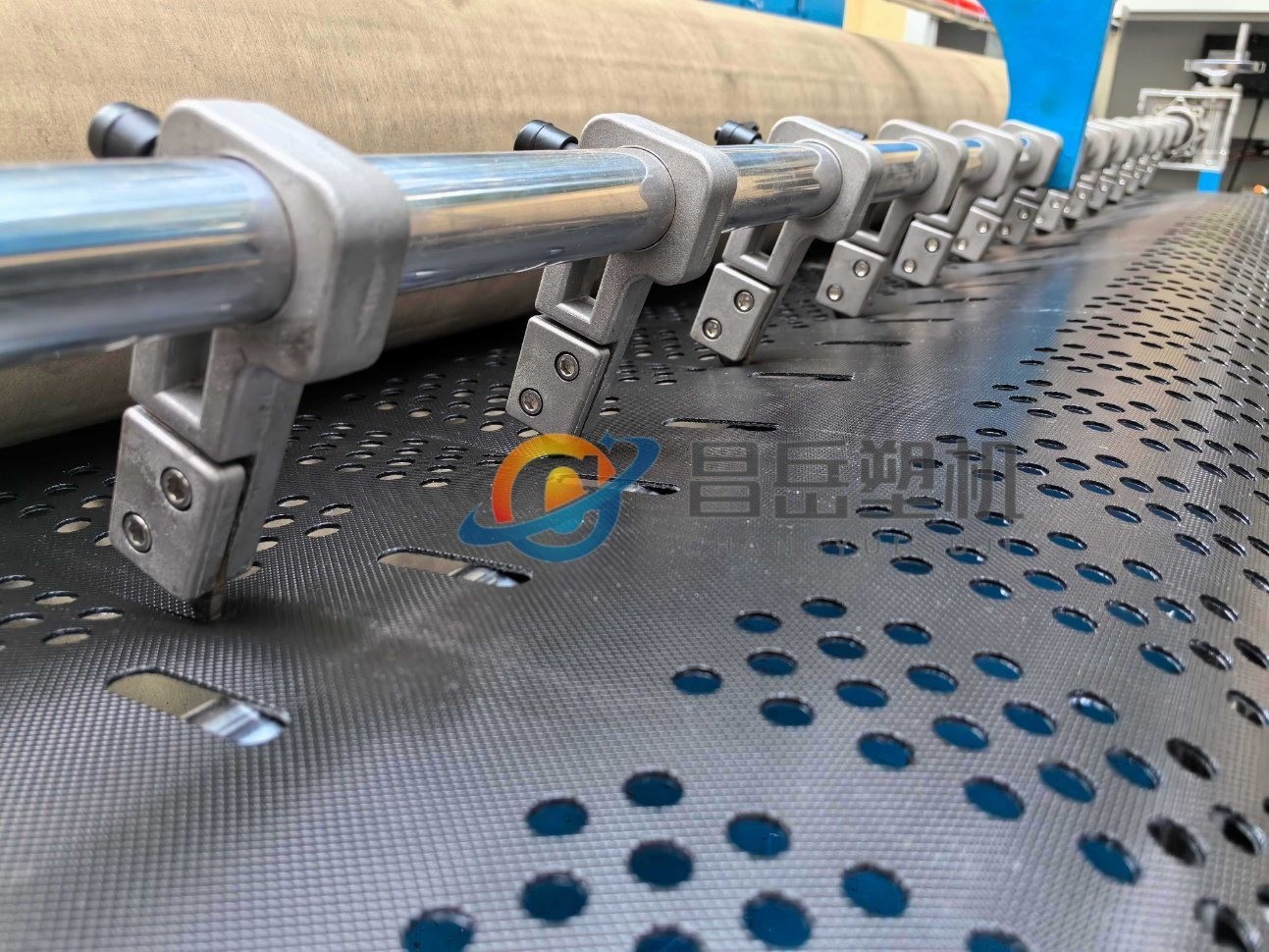

3. slitting device:    quantity according to requiremen

1. haul off:    two rubber rollers

2. protection film lamination device

3. meter counter:    Autonics from Korea

1. shear cutter

2. cutting width:  according to requirement

3. cutting thickness:    1-5 mm

control panel

PLC control / not PLC control

inverter:  ABB / Delta / according to customer requirement

contactor & relays:    Siemens

switch:                       CHNT

touch screen:             Siemens

PLC:                           Siemens

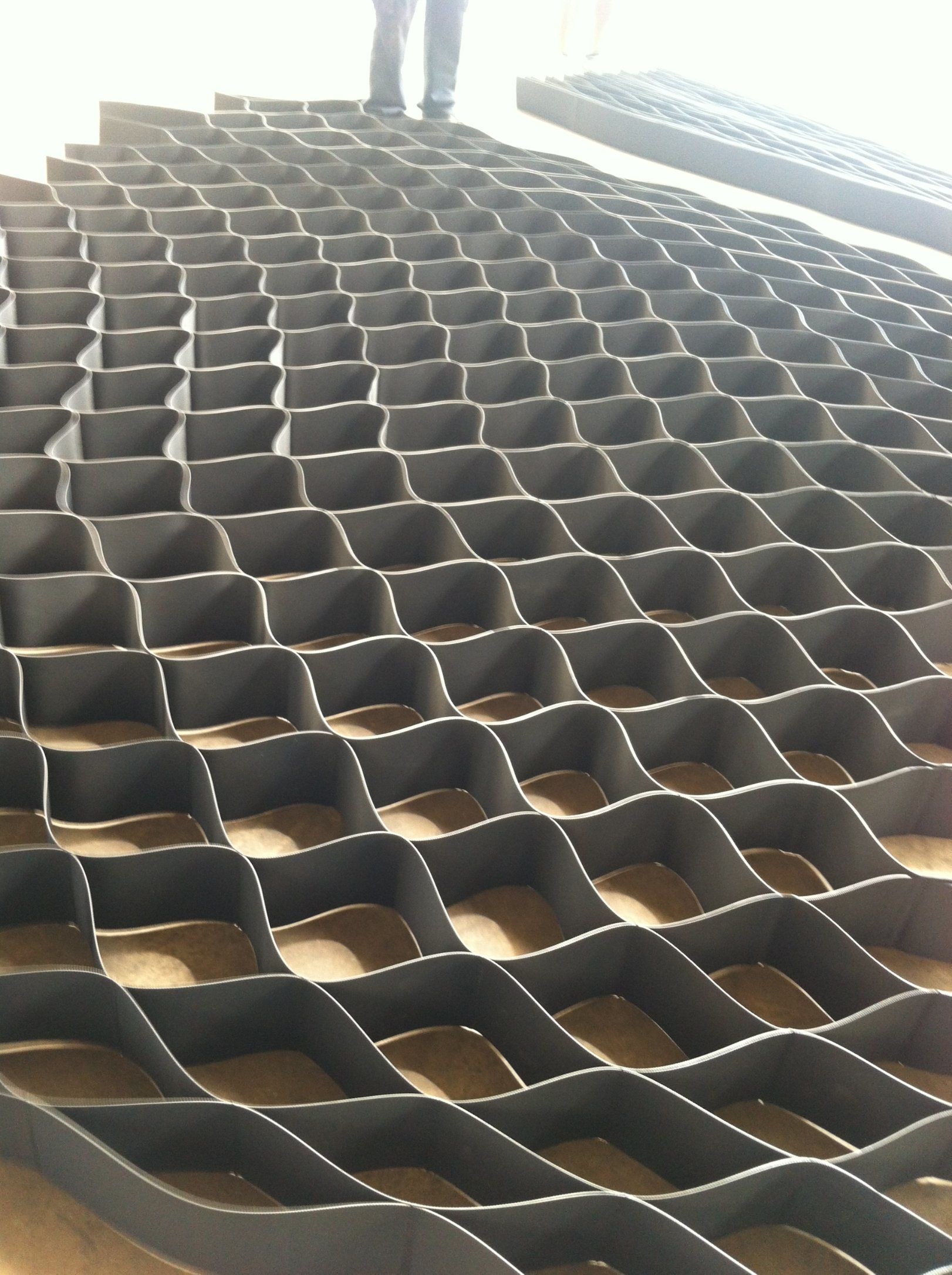

finished Geo cell

1. After the machines are finished, the seller will test all machines before shipment. If the buyer can not come to test the machine,
    we will test the machines and send the sample to buyer.
