| Brand Name: | KANGJIA |
| MOQ: | 1 set |
| Delivery Time: | 45 days |
| Payment Terms: | Pay a 30% deposit; pay the balance upon shipment. |

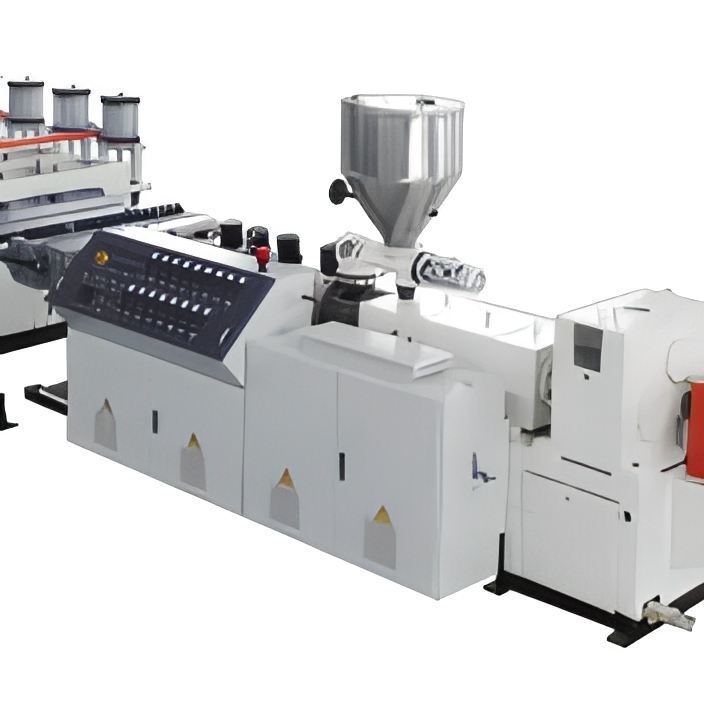

Industrial PVC Pipe Extrusion Line | Automatic Water Supply & Drainage Pipe Making Machine | High-Output Plastic Pipe Production Plant
Precision Engineering for the World's Most Essential Piping Systems. Our PVC Pipe Extrusion Line is a heavy-duty, high-performance solution designed for the continuous production of high-quality PVC pipes. Whether you are manufacturing small-diameter electrical conduits or large-diameter municipal water supply and drainage pipes, our line ensures unmatched wall-thickness uniformity, smooth internal finishes, and high structural integrity to meet international standards (ISO, ASTM, DIN).
The Market: Urbanization and modern agriculture require millions of miles of durable piping every year. Our Advantage: We specialize in High-Efficiency Conical Twin-Screw technology that allows for high calcium carbonate loading without sacrificing pipe strength. This significantly lowers your production costs while the integrated Automatic Belling Machine ensures your pipes are ready for the market immediately after production.
| Feature | Benefit |
|---|---|
| SJSZ Series Twin-Screw Extruder | High-torque gearbox and bimetallic screw provide stable extrusion and exceptional wear resistance. |
| Precision Vacuum Sizing Unit | Advanced vacuum system and high-efficiency spray cooling ensure the pipe maintains a perfect circular shape and precise diameter. |
| PLC-Synchronized Haul-off | Multi-claw cater-pillar haul-off synchronized with the extruder speed via PLC to prevent pipe stretching or deformation. |
| Dust-Free Planetary Cutter | Delivers clean, burr-free chamfered edges for large-diameter pipes, eliminating the need for manual finishing. |
| Integrated Belling Machine | Options for "U" type, "R" type, or Square type sockets for seamless pipe-to-pipe connection. |
| Specification | Details |
|---|---|
| Extruder Model | SJSZ 51/105, 65/132, 80/156, or 92/188 |
| Raw Materials | PVC Resin + Calcium Carbonate + Stabilizers |
| Pipe Diameter Range | Φ16 mm – Φ800 mm (Customizable by model) |
| Max. Output Capacity | 150 kg/h – 1000 kg/h |
| Total Line Length | 15 – 35 Meters (Depending on diameter and speed) |
| Cooling Method | Multi-Stage Vacuum and Spray Water Cooling |
| Power Control | ABB Inverter / Si-emens PLC / Omron Temperature Control |
Q: Can this machine produce different diameters? A: Yes. One production line can produce a range of diameters (e.g., 110mm to 250mm). You simply need to change the die head and the sizing sleeve for each diameter.
Q: How do you control the pipe thickness? A: Thickness is controlled by the die head gap and the ratio between the extruder speed and the haul-off speed. For high-end requirements, we can equip the line with an Ultrasonic Thickness Gauge for real-time automatic adjustment.
Q: What is the service life of the screw and barrel? A: Our bimetallic screws are designed for heavy industrial use. With proper maintenance and correct formulation, they typically last for 1.5 to 2 years of continuous operation before requiring refurbishment.
