Detail Information

Model NO.:	8911	Assembly Structure:	Integral Type Extruder
Screw:	Single-Screw	Engagement System:	Full Intermeshing
Screw Channel Structure:	Deep Screw	Exhaust:	Exhaust
Automation:	Automatic	Computerized:	Computerized
Transport Package:	Film Packing	Specification:	2-8 Mm
Trademark:	Changyue	Origin:	Qingdao, China
HS Code:	84772090	Supply Ability:	20-40 Kg/H
After-sales Service:	Engerneers Available To Serve Oversea	Warranty:	1 Year
Type:	Profile Extruder	Plastic Processed:	PVC
Product Type:	Strip	Feeding Mode:	One Feed
Customization:	Available \| Customized Request
Highlight:	380kg/H UPVC Profile Extrusion Machine , 80/156 UPVC Profile Extrusion Machine , 80/156 PVC Window Profile Extrusion Line

Product Description

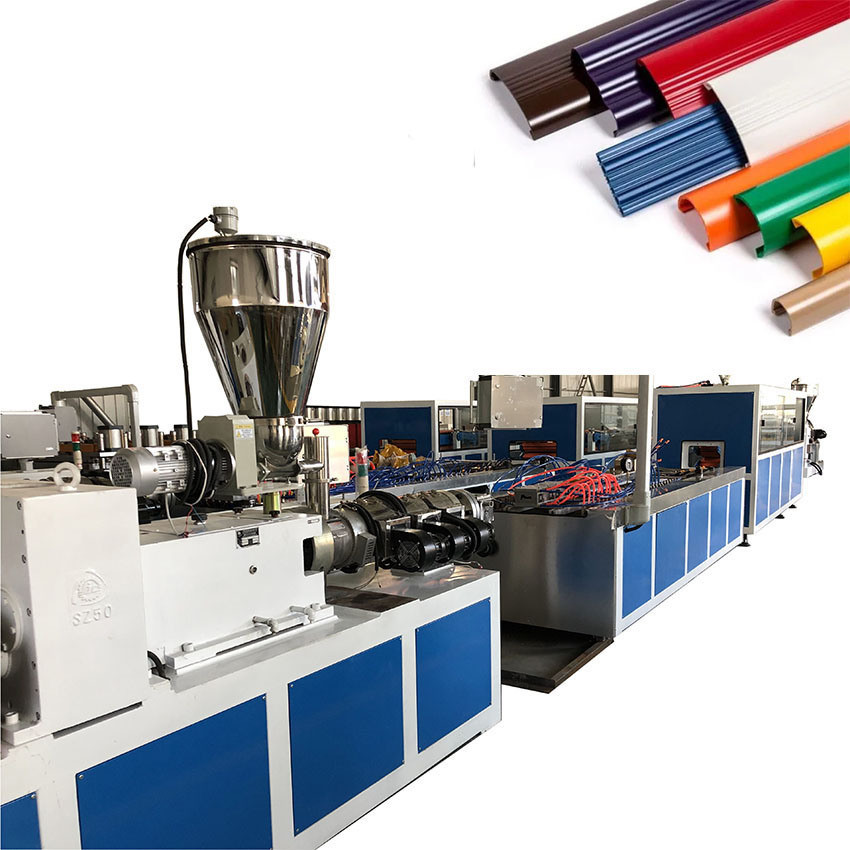

Full Intermeshing PVC/PP/PE Profile Plastic Making Machine Production Line for Market

twin conical screw extruder UPVC window and door profile extrusion production line

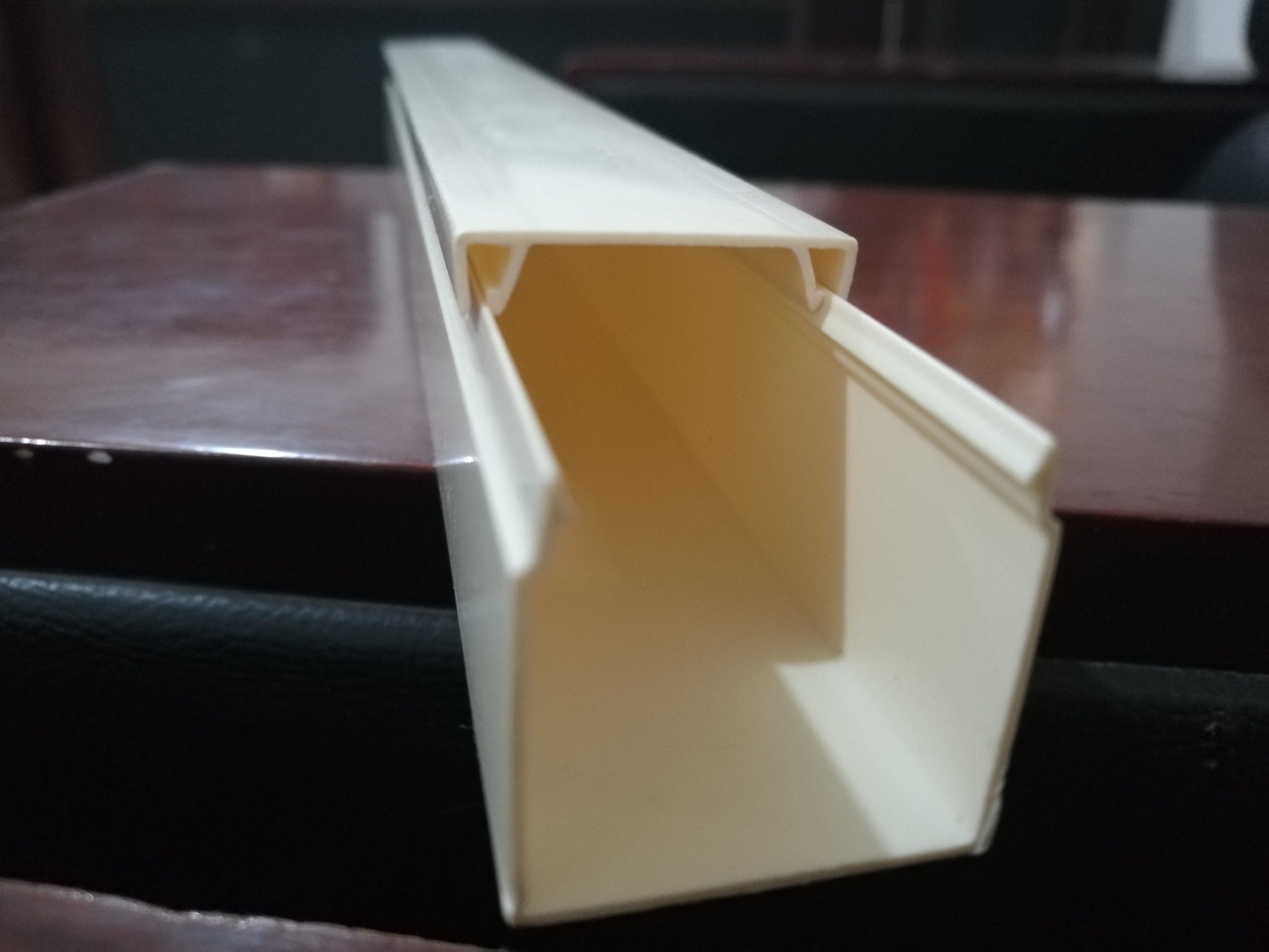

This PVC/WPC profile plastic making machine adopts conical twin screw sepcially used for the extruder,matching with different standard of profile die and auxiliary device, it is used to extrude PVC ceiling panel , PVC wall panel, PVC trunking profile and other PVC profile. It adopts vacuum cailbrating, online film transferring machine,auto haul-off and cutting device,and material discharge. Features of the production line,automatic temperature controlling, stable performance,and easy operation.

Machine list

Item	component	quantity
1	double screw extruder	1 set

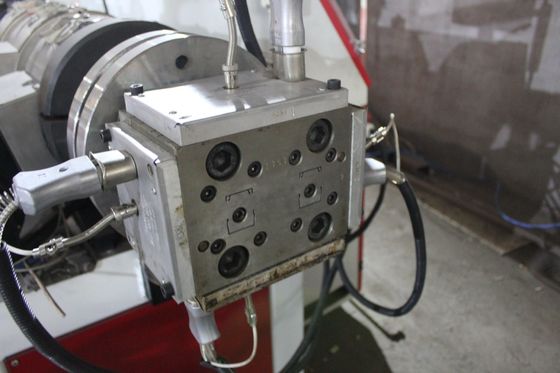

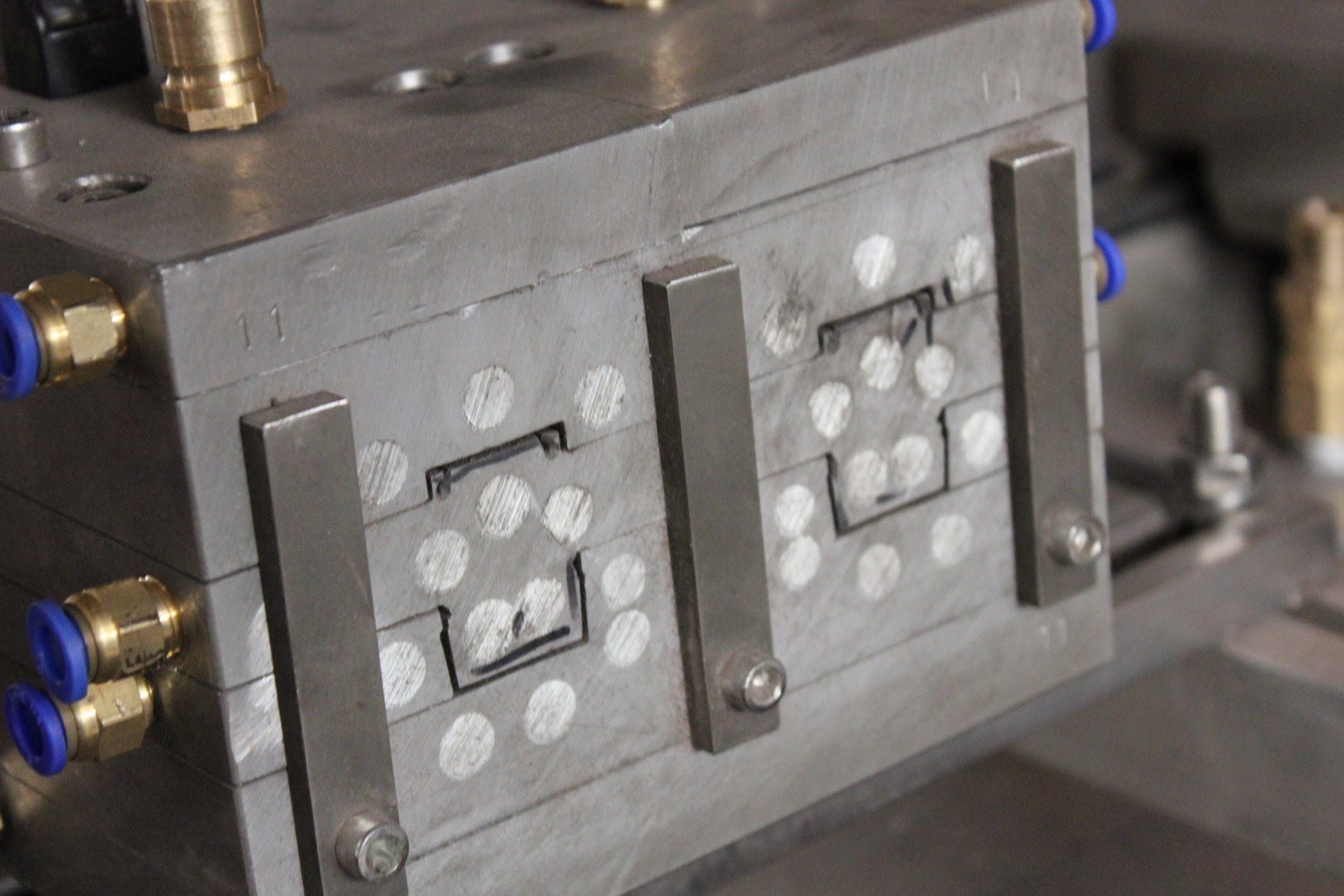

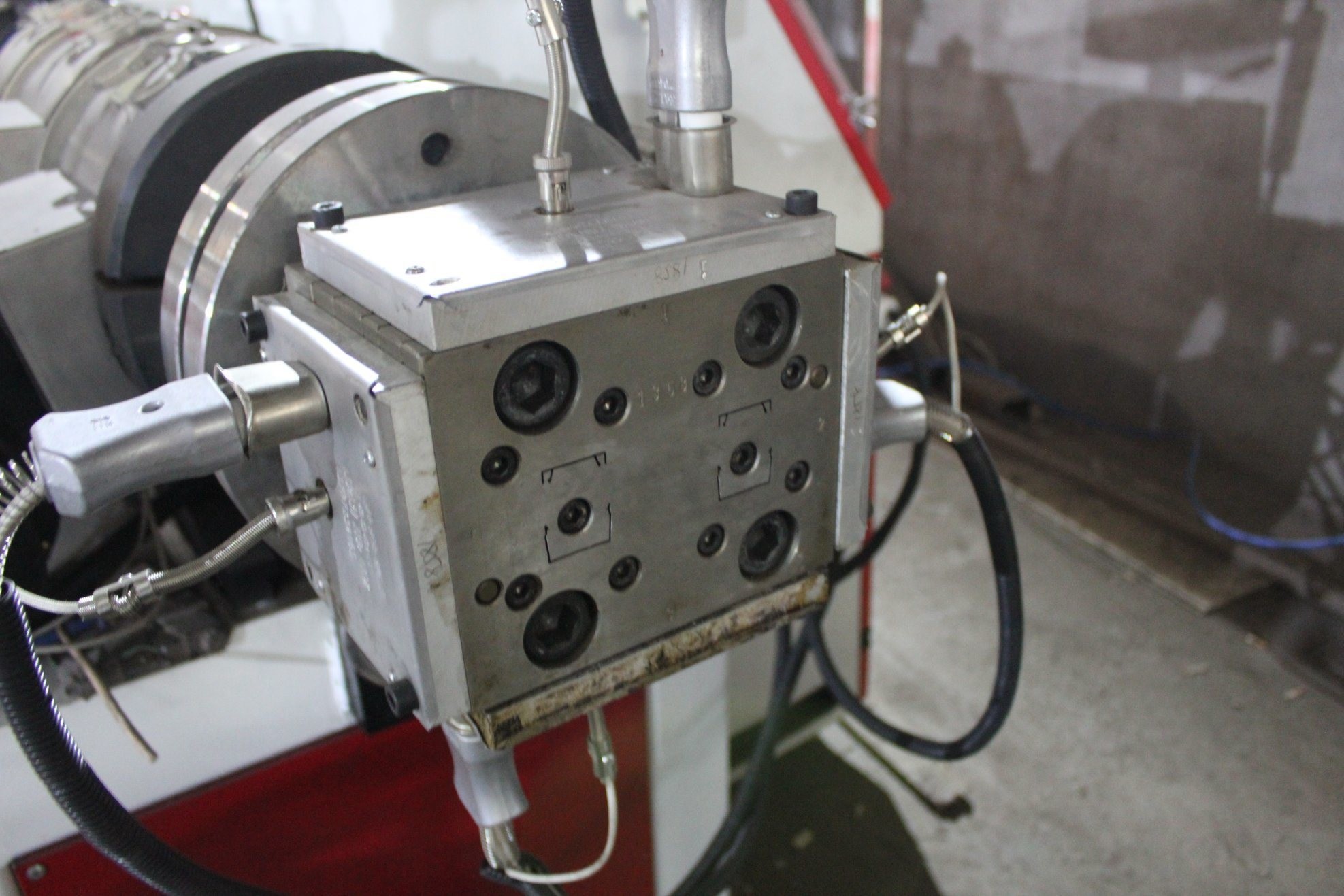

2	mould	as your require

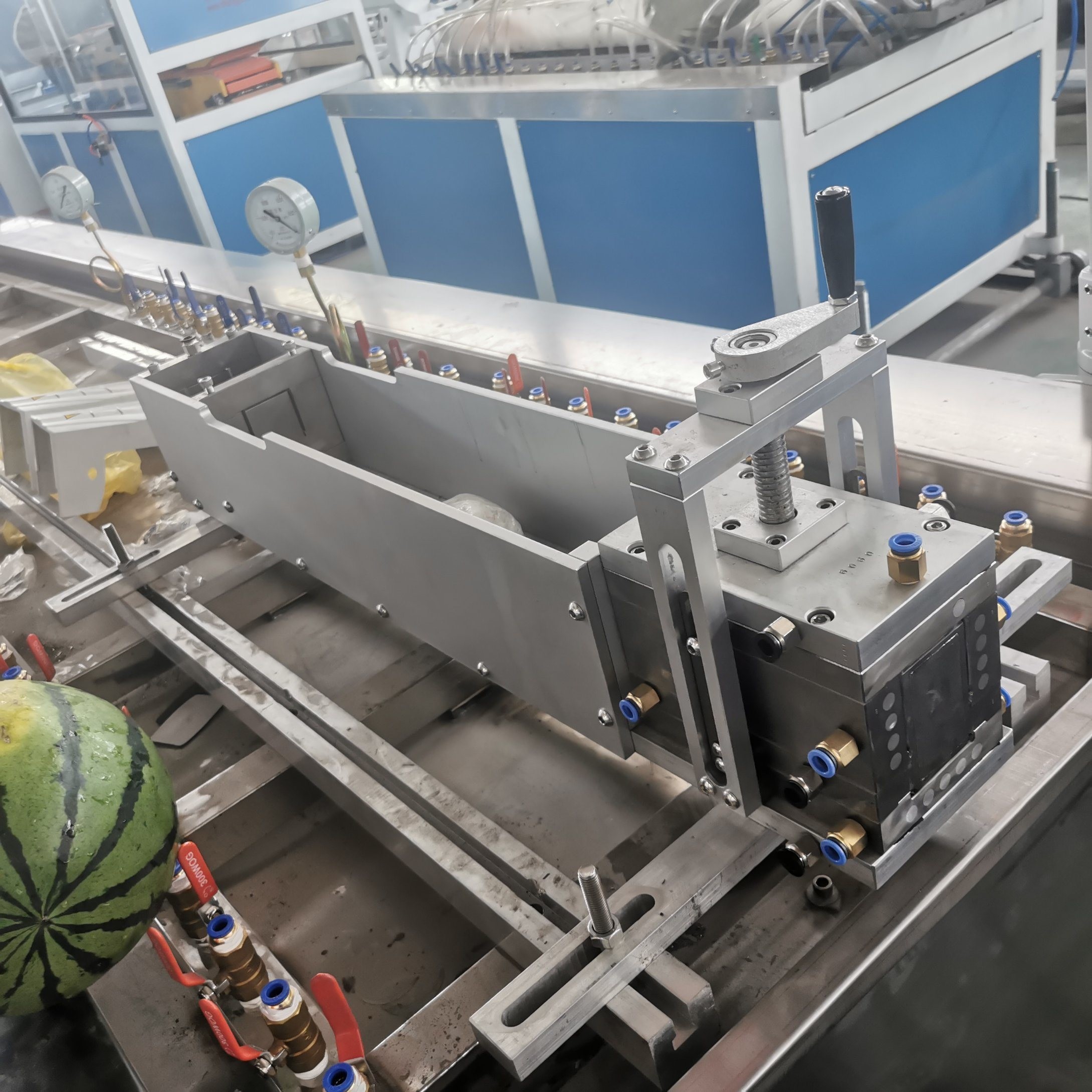

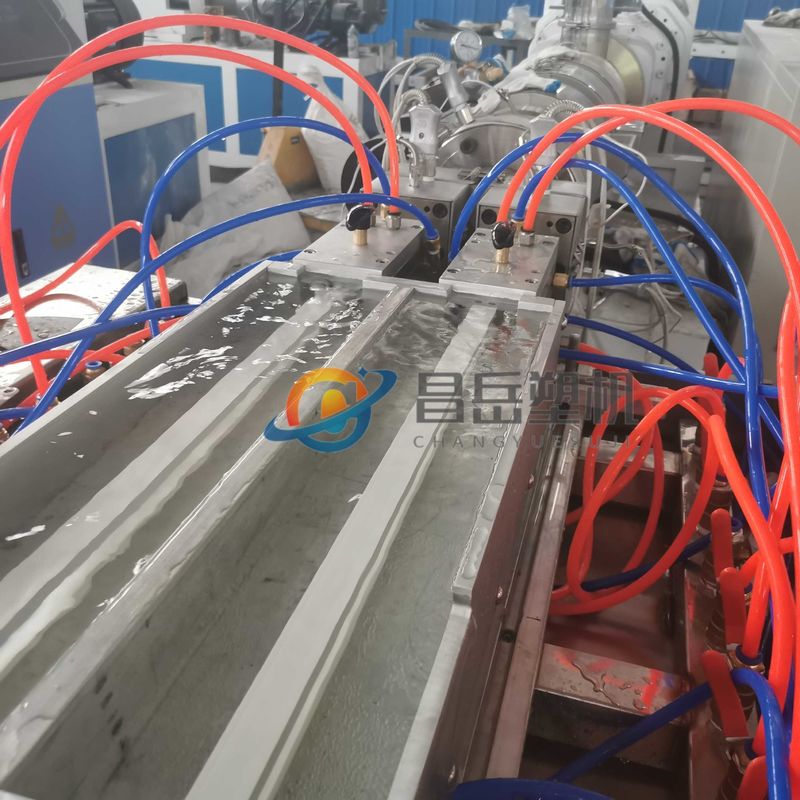

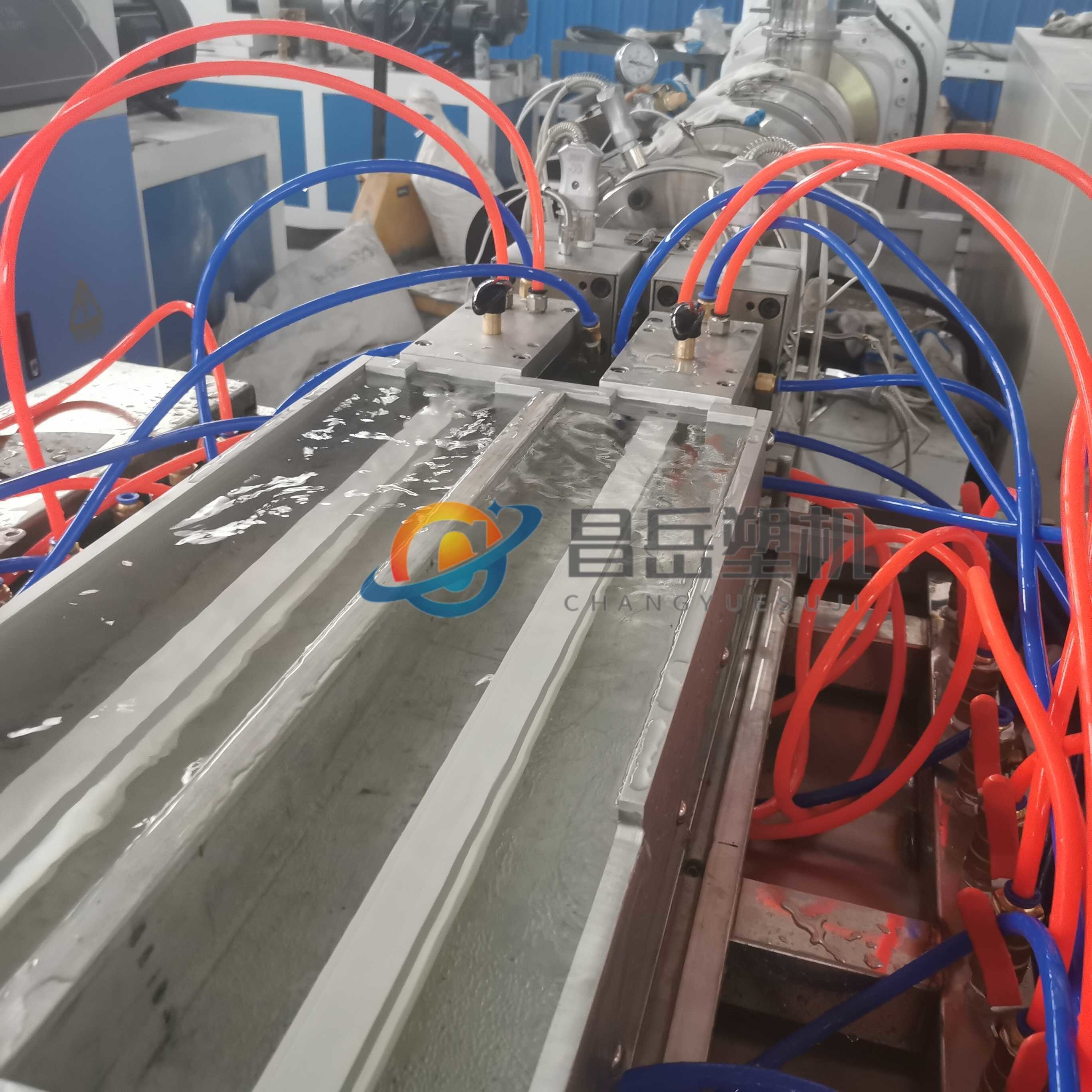

3	vacuum calibration tank	1 set
4	haul off machine	1 set
5	cutter	1 set
6	stacker	1 set

Technical data

Model	SJSZ51	SJSZ65	SJSZ80
screw diameter(mm)	51/105	65/132	80/156
screw rotation speed(r/min)	1-30	1-34.7	1-36.9
effective length of screw(mm)	1050	1430	1800
main motor power(kw)	22	37	55
barrel heating power(kw)	18	24	36
capacity(kg/h)	110	250	380
central height(mm)	1000
net weight(kg)	3200	5000	6500

Details Image

Powder + additive → mixing → spiral auto loader → twin screw extruder → mould → vacuum calibration tank → haul off machine →laser pinter →cutting machine → stacker or automatic belling machine

1. Particular designed conical twin screw for PVC powder raw materials.
2. Adapted to different moulds for different PVC profiles.
3. With special designed vacuum calibration platform, haul-off and cutter, stacker.
4. Adopt with full aspects efficient water mist cooling on profile.

Company Profile

Qingdao Changyue Plastic Machinery Co.,Ltd is a professional plastic extrusion machine manufacturer located in Qingdao city - abeautiful seaside city.

We are using the latest technology. Our products include plastic pipe machine, plastic profile machine,plastic sheet machines, plastic board machines, PP PET strap band lines. Geostrap band lines.

Our workshop

CREDITQUALITY,AFTER SALES SERVICE" is our goals.WE ARE WAITING FOR YOU,EVERYONE !

Customer Photos

Our machines have been exported to more than 30 countries include Canada, USA, Russia, Bulgaria, Turkey, India, Kuwait, Saudi arab, Nepal, Sri Lanka, Israel, Nigeria, Rawanda, Indonesia, Vietnam,Thailand etc.. "

Certifications

380kg/H UPVC Profile Extrusion Machine 80/156 PVC Window Profile Extrusion Line 20

Why Choose Us

1. Low cost
* All the machine ,we make it ourself to reduce the cost of our customer.

2. Genuine product with excellent quality
* We choose our material very strict.
* All the material come to our factory must pass the quality test
* Substandard goods are returned to the supplier.

3. Engerneers available to serve oversea

4. Quick delivery
* The company provide just in time delivery with its streamlined supply chain.

5. Cost saving
* Se take strong attention to every detail in the manufacturing process.
* The quality control in our factory is very strict.
* All defective semi-manufactures must be treated again or reject.
* All the machine must be checked out ,then delivered to our customer.
* All about that pushing up the price,but get good quality machine.
* What we want to do is give our customer a good quality product with stable working and long lived.
