Detail Information

Model NO.:	SJ10	Engagement System:	Full Intermeshing
Screw Channel Structure:	Deep Screw	Exhaust:	Exhaust
Automation:	Automatic	Computerized:	Computerized
Transport Package:	Film Packing	Specification:	2-8 Mm
Trademark:	Changyue	Origin:	Qingdao, China
HS Code:	84772090	Supply Ability:	20-40 Kg/H
Type:	Profile Extruder	Plastic Processed:	PVC
Product Type:	Profile Extrusion Molding Machine	Feeding Mode:	One Feed
Assembly Structure:	Integral Type Extruder	Screw:	Single-Screw
Customization:	Available \| Customized Request
Highlight:	92/188 PVC Cable Trunking Machine , 700kg/H PVC Trunking Extrusion Line , 700kg/H PVC Cable Trunking Machine

Product Description

Customized PVC Cable Duct Extrusion Machine with Full Intermeshing Engagement System

Product Description
PVC profile has such characteristics as sound separation, sound absorption,heat separation,temperature-keeping etc.The materials is incombustible,it is safe for use.
All series fo products have property of moisture proof,mildew proof,water resistance ,it's vibration resistant effect if good.All series of products have property of weathering proof,its luster may remain forever, it is not easy to be ageing.This product is light,storage & transport,construction are rather convenient. This product can be worked with normalj tools for wooden material. Driling,sawing,nail,planing,bonding can be conducted like wooden material. It is suitable for thermal bending and fold proccessing. It can be welded,it can also be bonded with other pvc material.The surface of this product is smooth,it can be printed(clean the surface before printing).

Product Paramenters

extruder	Main motor	total power(kw)	output	line length(m)
51/105	22kw	60	150kg/h	20
45/90	18.5kw	45	80kg/h	20
51/105	22kw	60	150kg/h	24
65/132	37kw	100	250kh/h	24
80/156	55kw	120	400kg/h	28
80/156	75kw	160	450kg/h	36
92/188	90kw	200	700kg/h	36
92/188	90kw	230	700kg/h	36

Details Images

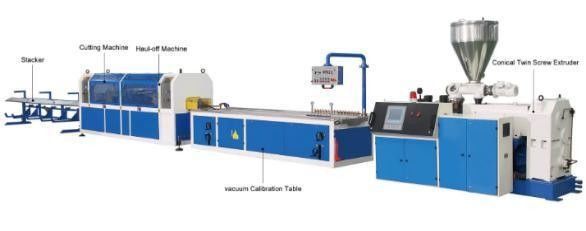

Process flow: powder + additive → mixing → spiral auto loader → twin screw extruder → mould → vacuum calibration tank → haul off machine →laser pinter →cutting machine → stacker or automatic belling machine

UPVC profile has such characteristics as sound separation, sound absor- ption,heat separation,temperature-keeping etc.The materialsis incombustible,it is safe for use.
All series fo products have property of moisture proof,mildew proof,water resistance ,it's vibration resistant effect if good.

Oue company
92/188 PVC Cable Trunking Machine 700kg/H PVC Trunking Extrusion Line 8

Qingdao Changyue Plastic Machinery Co.,Ltd is a professional plastic extrusion machine manufacturer located in Qingdao city - abeautiful seaside city.
We are using the latest technology. Our products include plastic pipe machine, plastic profile machine,plastic sheet machines, plastic board machines, PP PET strap band lines. Geostrap band lines.

Our customer
Our machines have been exported to more than 30 countries include Canada, USA, Russia, Bulgaria, Turkey, India, Kuwait, Saudi arab, Nepal, Sri Lanka, Israel, Nigeria, Rawanda, Indonesia, Vietnam,Thailand etc..

exhibition

92/188 PVC Cable Trunking Machine 700kg/H PVC Trunking Extrusion Line 11

Packing
Why choose us

Our advantages
1. Low cost
* All the machine ,we make it ourself to reduce the cost of our customer.
2.excellent quality
* All the material come to our factory must pass the quality test.Substandard goods are returned to the supplier.
3. Engerneers available to serve oversea
4. Quick delivery
* The company provide just in time delivery with its streamlined supply chain.

Our Service

1. We will test the machine for customer before shipment.

2. We will put some electrical parts as spare part for the buyer for free.

3. If the buyer need, we wil send technician to the buyer factory helping install the machine, train the worker.

Looking forward to your cooperation
