4m Calibration Table Length Single-Screw Plastic PVC Tag Holder Extrusion Making Machine
PVC Price label Holder / Tag Profile Making Extrusion Machine

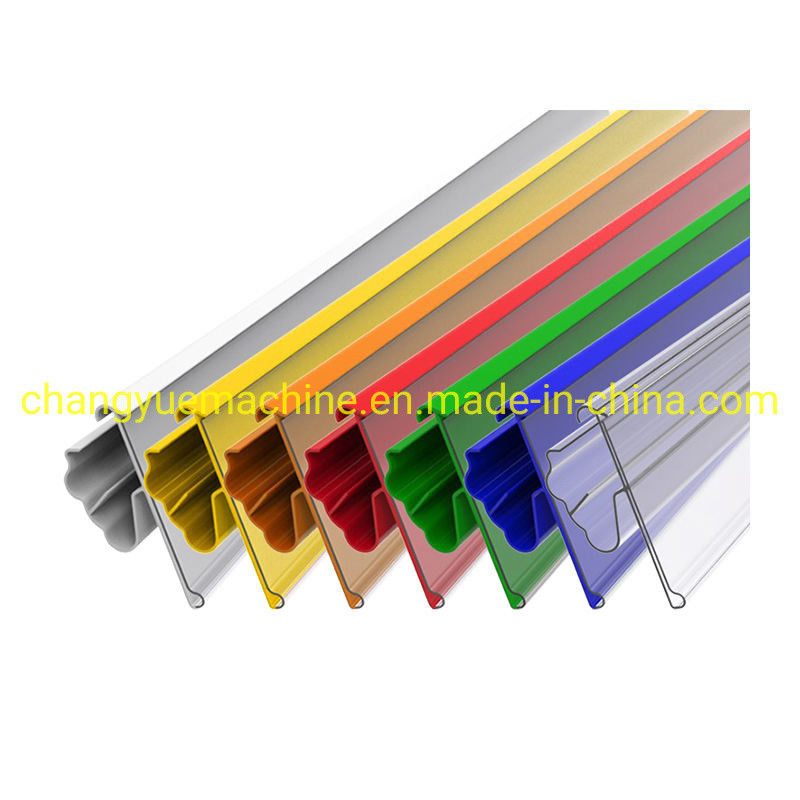

plastic PVC price tag holder extrusion making machine
Product Description
PVC price tag holder extrusion machine /pvc price holder profile extruder making machine line in factory
PVC profile machine is mainly used for making PVC Small profile like PVC Skirting profile;PVC Wall corner profile;PVC ceiling with different section shape and height. the surface of PVC profile/panel can be treated by printing & coated with glossy oil, or by heat transfer printing, or by lamination, which can make good decoration effect for kitchen,toilet,balcony and so on.
Layout of pvc price tag holder extrusion machine:
extruder---Mold---Vacuum calibration Table---Traction Machine---Cutting Machine---Stacking Table
Details of pvc price tag holder extrusion machine:
1. Single screw extruder machine:
(1) Screw diameter: 45-65mm; L/D: 28:1; Material: 38CrMoAIA;
Surface treatment: nitrogenization treatment, nitrogenization layer thickness: 0.4~0.7mm; Hardness:HV850~940;
(2) Special speed reducer gearbox: gear material 20CrMnTi (Hard tooth surface, with grinding);
(3) Drive motor power: 7.5~15KW; Frequency convertor control; Temperature control meter: intelligent double PID type;
(4) Heating control zone: 7 zone (barrel 4 zone, extruding die 3 zone);
2. Extruding die:
It consists of extruding die head and calibration die, Special S136H mirror surface steel for dies;

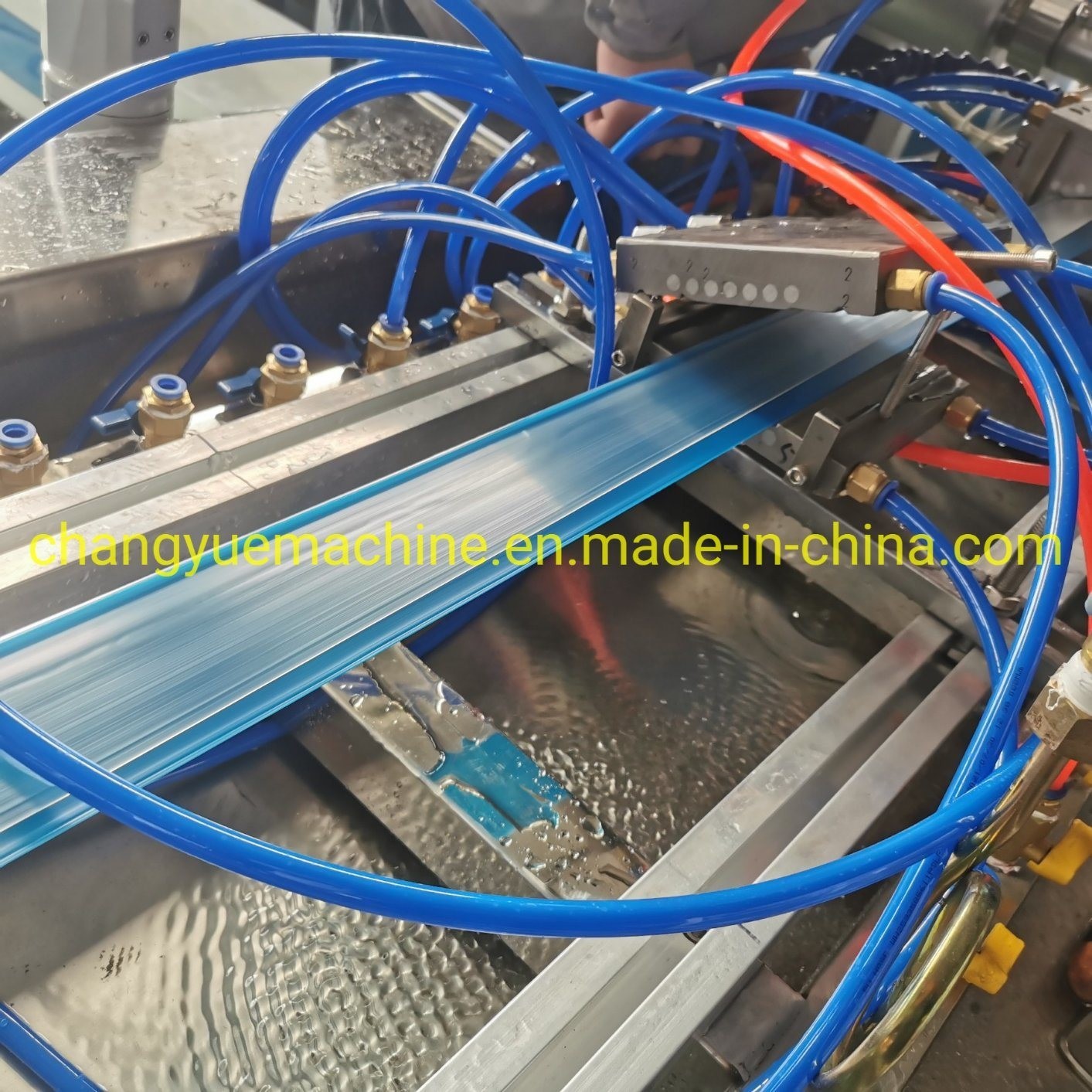

3. 3 dimensional electric driven cooling calibration tank:
3D adjusting machine frame, with12-way vacuum, 12-way cooling water joint, which is quite general;
Water-loop type vacuum pump 1.5KW;
Water tank length: 1.5~3meters.
4. Belt type haul off unit:
Open-close, up-down adjusting, workable length 1meter,constant stable tractor, high wear-resistant surface foamed PU multi-wedge belt, frequency conversion controller, tractor speed 0-15m/minute stepless adjustable. Power: 1.5~3KW.
5. Automatic cutter with collection stand:
Pneumatic cutter machine, alloy blade, with blade heating device, neat cut end, without white mark;
Automatic meter counting, automatic reciprocating platform, online cutting positioning precisely;
with collection stand, finish cutting and collection automatically, high automation.
|
Model No.
|
Screw Diameter |
L/D |
Capacity |
Power(kw) |
|
SJ-35
|
35 |
25-30:1 |
5-10KGS/H |
5.5 |
|
SJ-45
|
45 |
25-30:1 |
10-15KGS/H |
7.5 |
|
SJ-50
|
50 |
25-30:1 |
20-25KGS/H |
11 |
|
SJ-55
|
55 |
25-30:1 |
25-30KGS/H |
15 |
|
SJ-65
|
65 |
25-30:1 |
40-60KGS/H |
18.5 |

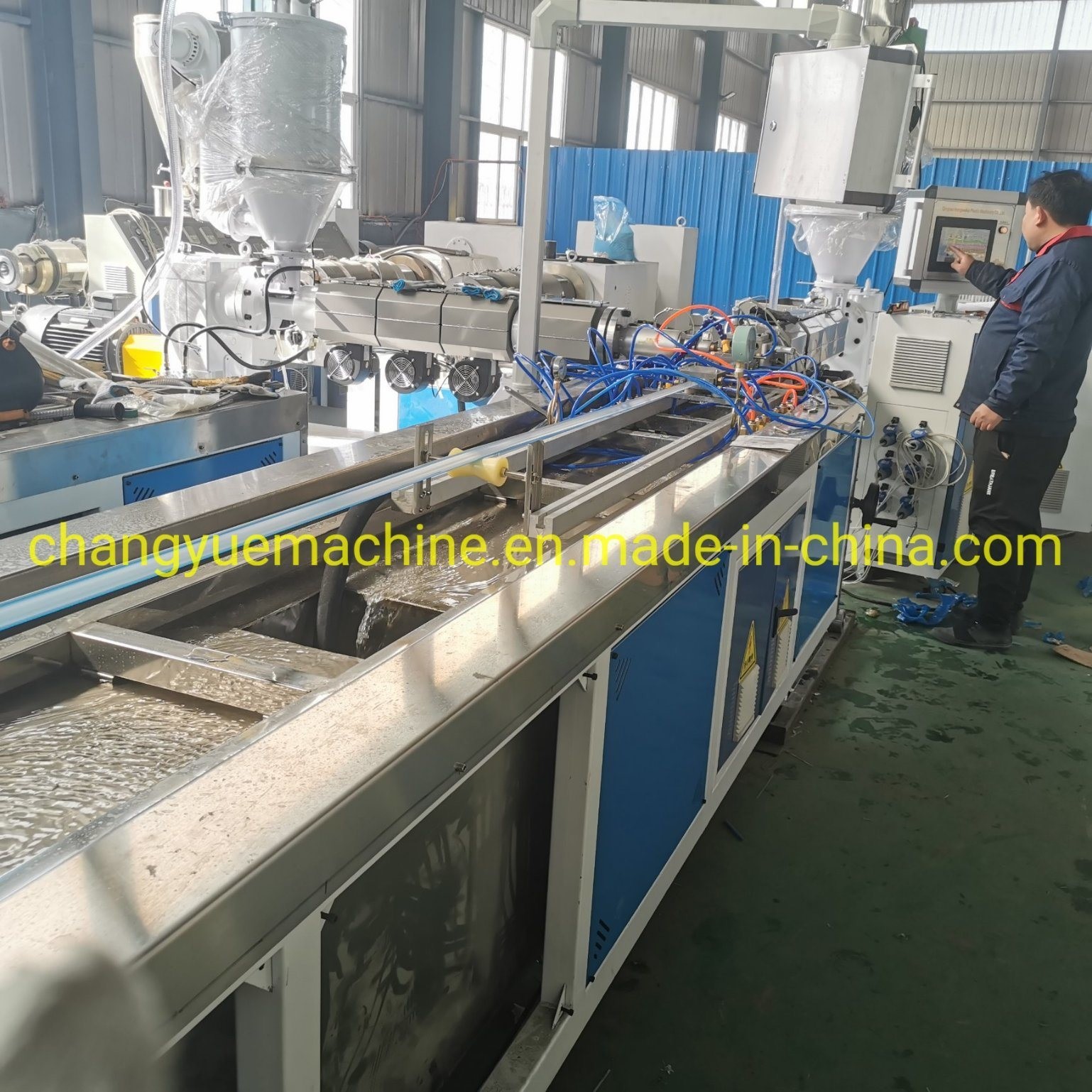

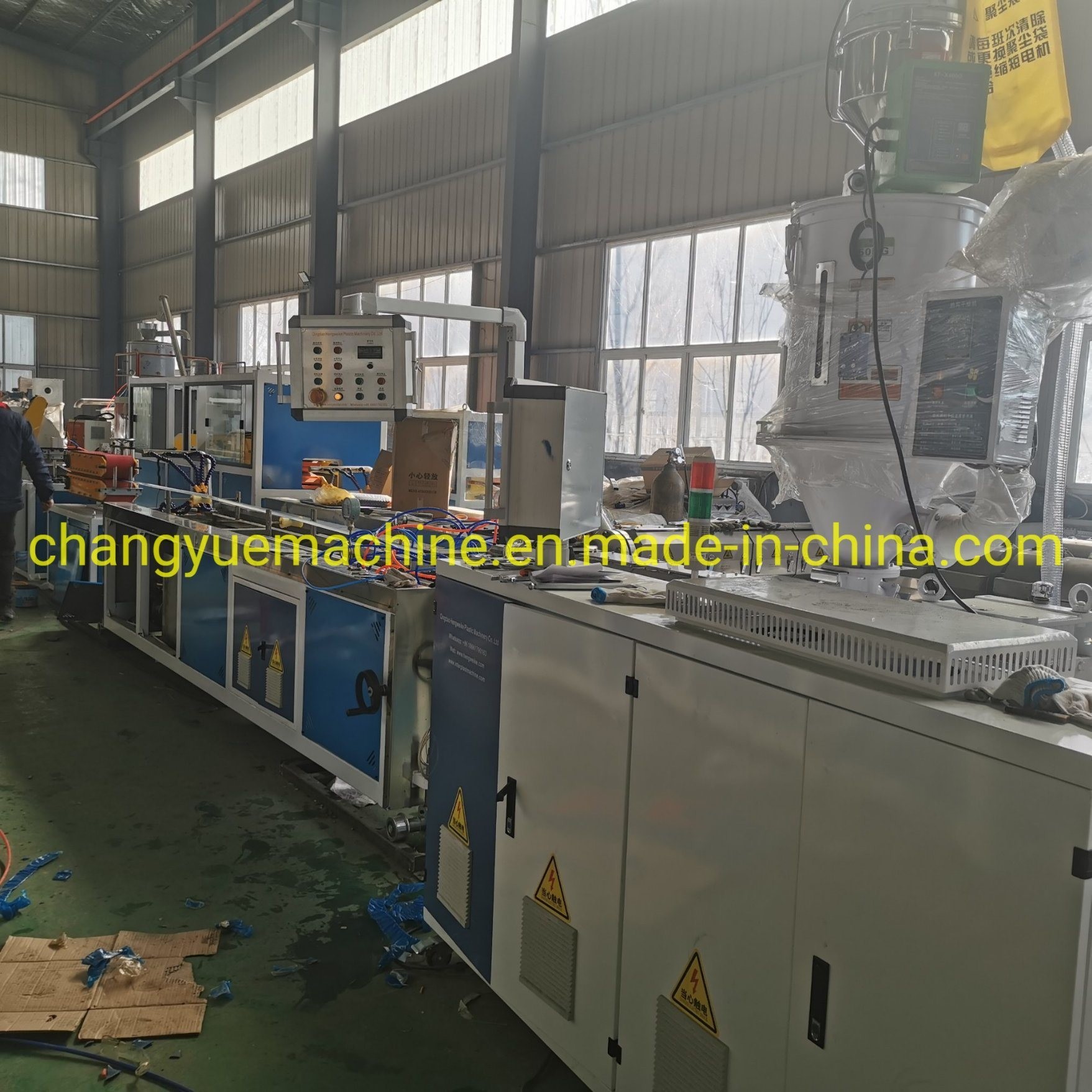

Detailed Photos
After Sales Service
1. After the machines are finished, the seller will test all machines before shipment. If the buyer can not come to test the machine,
we will test the machines and send the sample to buyer.
2..After shipment, the seller will send one or two technicians to the buyer's factory to help the buyer install the machine and train
workers for buyer.
3. We will supply all electricity drawing, machine installation drawing.
4. When make shipment, we will put some spare electricity parts for free, like the barrel hearers, thermcouples, breakers, relays,
and other items which is easier broken.
