Detail Information

Condition:	New	Plastic Processed:	PVC
Application:	PIPE	Screw Design:	Double-screw
Twin Screw Type:	Counter-rotating Conical Twin-screw	Screw Material:	40CrMoTi
Screw L/D Ratio:	22:1	Screw Speed (rpm):	40 Rpm
Showroom Location:	Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Brazil, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Romania, Bangladesh, So	Voltage:	220-415V
Power (kW):	75	Weight:	8 KG
Warranty:	1 Year	Key Selling Points:	MACHINE
Applicable Industries:	Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Construction Works , Energy & Mining	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	3 Years	Core Components:	Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox, Screw
Machinery Test Report:	Provided	Name:	Pvc Conduit Pipe Extrusion Machine
Raw Material:	PVC Resins+CaCo3	Final Product:	PVc Conduit Pipe
Inverter:	ABB / DELTA / SIEMENS	Motor:	WEG / SIEMENS
Temperature Controller:	Omron Japan	Extruder Type:	TWIN CONICAL SCRWE EXTRUDER
Pipe Diameter:	16- 63 MM
Highlight:	plastic pipe production line , plastic pipe extrusion line , plastic pipe extruder

Product Description

PVC dual electric conduit pipe production line / PVC tube making machine

Description of PVC pipe makign machine

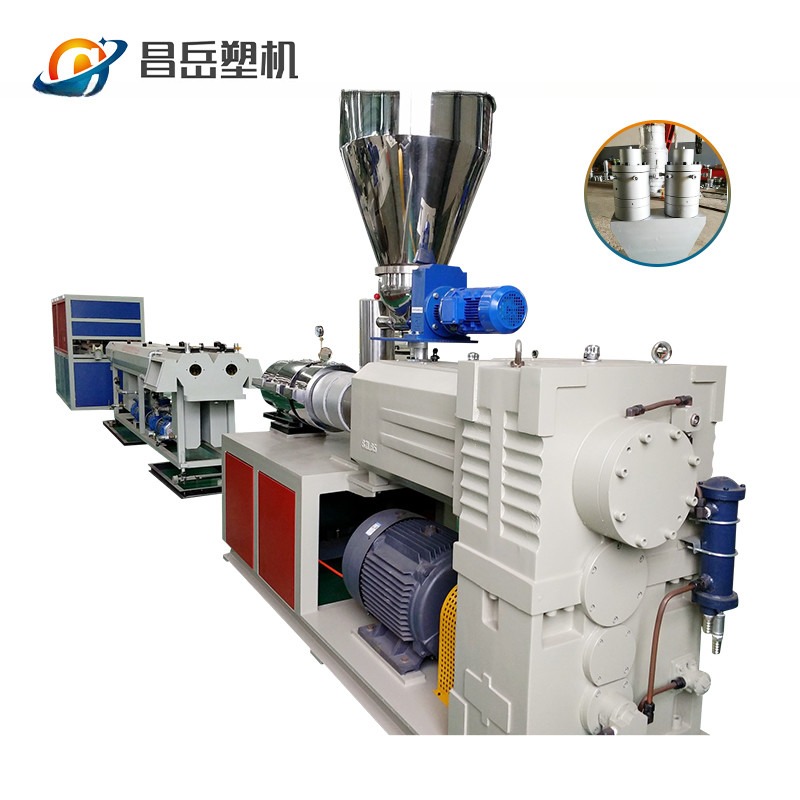

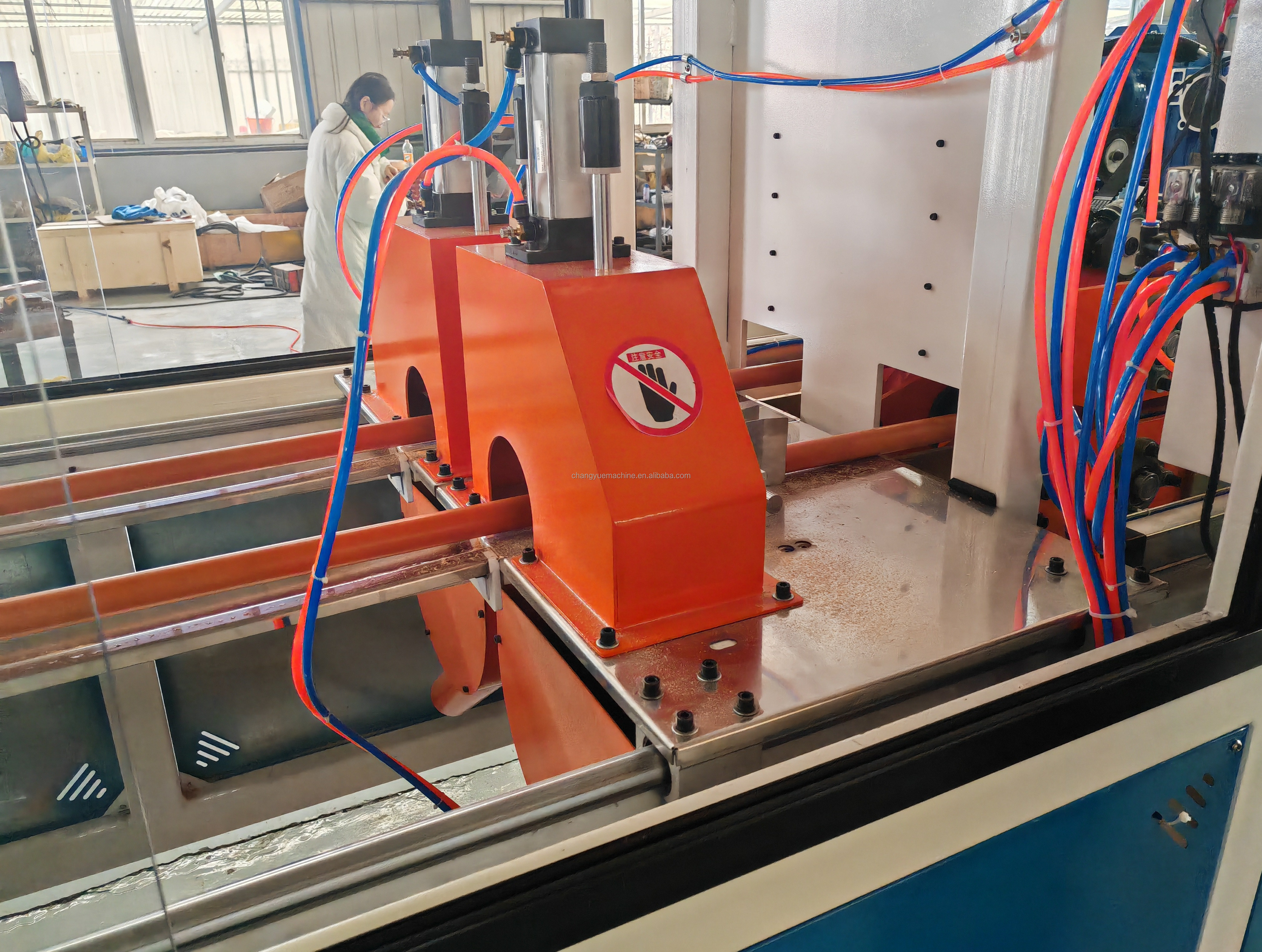

PVC pipe extruder machine/UPVC pipe making machine is mainly used in the manufacturer of the UPVC and PVC pipes with various tube diameters and wall thickness such as agricultural and constructional plumbing, water supply and drain etc. This set is composed of conical twin-screw extruder,vacuum calibration tank, hual-off machine,cutter, stacker etc.
Our machine can produce the PVC pipe with diameter from 16-630mm.

Main parameter of PVC pipe making machine

Model	pipe range(mm)	extruders	max.speed(m/min)	total power(kw)	max.output(kg/h)	line length(m)
PVC-50*2	16-50	SJSZ51/105	6	60	150	20
PVC-63	16-63	SJSZ45/90	10	45	120	20
PVC-110	50-110	SJSZ51/105	6	60	150	24
PVC-160	63-160	SJSZ65/132	5	100	300	24
PVC-250	110-250	SJSZ80/156	3.5	120	400	28
PVC-315	160-315	SJSZ80/156	3	160	400	36
PVC-450	250-450	SJSZ92/188	1.5	200	700	36
PVC-630	315-630	SJSZ92/188	0.9	230	700	36

Machine details

22 1 Screw L/D Ratio Plastic Dual Electric Conduit Pipe Making Machine for CPVC UPVC 0

Tag:

Place of Origin:	Shandong, China
Brand Name:	Changyue
Document:	Product Brochure PDF

Price:	$28,000.00/pieces >=1 pieces
Packaging Details:	Export Film Packing / According To Customer
Delivery Time:	15 Days (1 - 1 Pieces) To Be Negotiated ( > 1 Pieces)
Supply Ability:	10 Acre/Acres per Month

22 1 Screw L/D Ratio Plastic Dual Electric Conduit Pipe Making Machine for CPVC UPVC
