Name: 40kg/H-80kg/H PVC Single Wall Corrugated Pipe Production Line
Brand: Qingdao Changyue Plastic Machinery Co., Ltd.
Price: 85,500.00 USD
Availability: InStock

Detail Information

Model NO.:	65/33	Engagement System:	Full Intermeshing
Screw Channel Structure:	Deep Screw	Exhaust:	Exhaust
Automation:	Automatic	Computerized:	Computerized
Transport Package:	Film	Specification:	20-63mm
Trademark:	HYD	Origin:	Shandong, China
Type:	Pipe Extruder	Plastic Processed:	PE
Product Type:	Extrusion Molding Machine	Feeding Mode:	One Feed
Assembly Structure:	Separate Type Extruder	Screw:	Single-Screw
Customization:	Available \| Customized Request
Highlight:	PVC Single Wall Corrugated Pipe Production Line , 40kg/H Corrugated Pipe Production Line , 80kg/H Corrugated Pipe Production Line

Product Description

Full Intermeshing Engagement System PVC Single Wall Corrugated Pipe Production Line

PE PVC single wall corrugated pipe production line

Prouduct description
PVC PP PE single wall corrugated pipes produced by our single wall corrugated pipe machine have many features such as high intensity,good flexibility,high temperature resistance,resistant to corrosion and abrasion etc.
They has large market which are widely used in the fields of auto wire,electric thread-passing pipes,protective pipes of lamps and lanterns wire,circuit of machine tool,tubes of air conditioner and washing machine and so on.

Technical parameter

pipe diameter range(mm)	4.5-9mm	9-32mm	32-50mm
extruder model	SJ-30	SJ-45	SJ-65
motor power(kw)	4	11	18.5
capacity(kg/h)	10	40	80
cooling way	water or air	water or air	water or air
production speed(m/min)	6-10	8-15	10-17

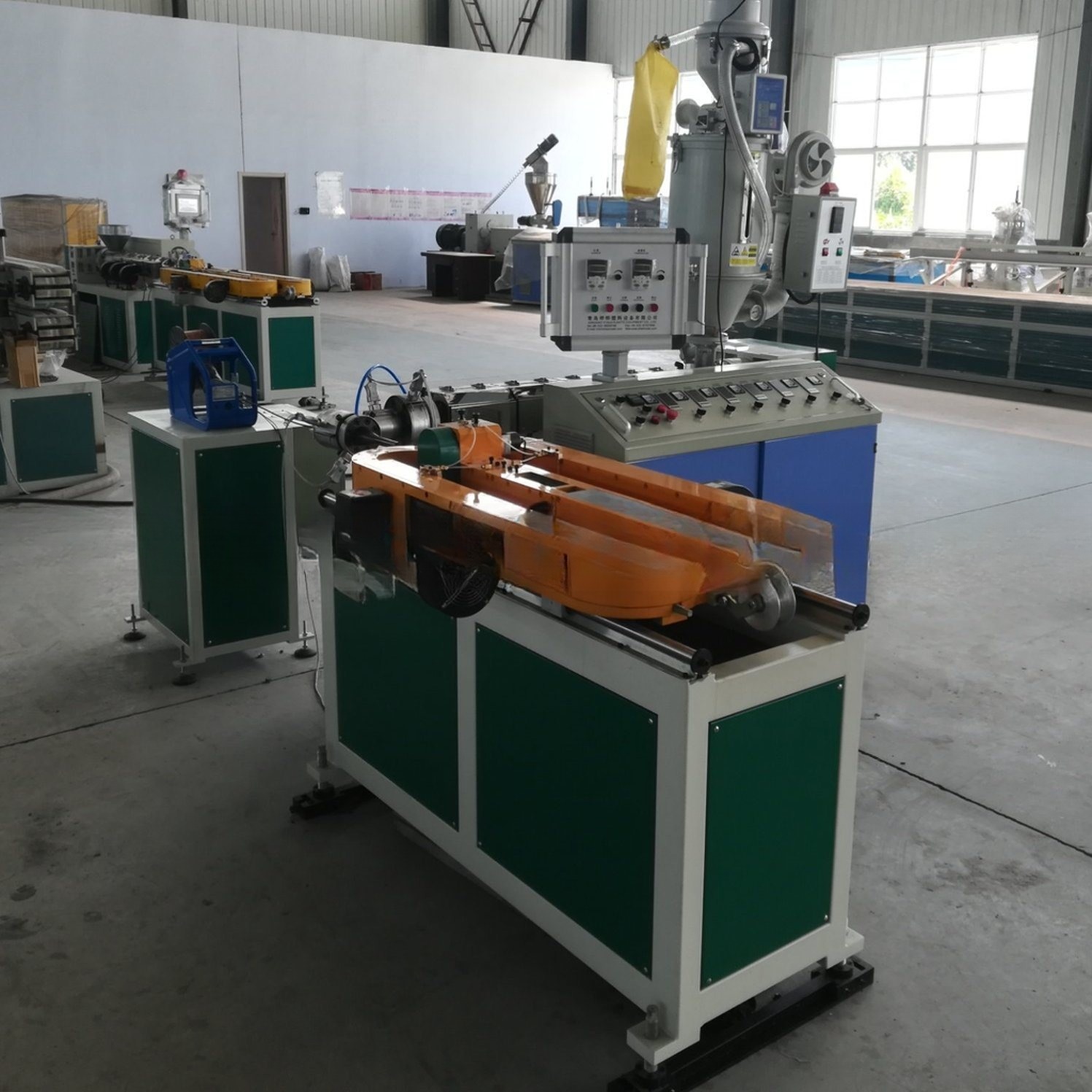

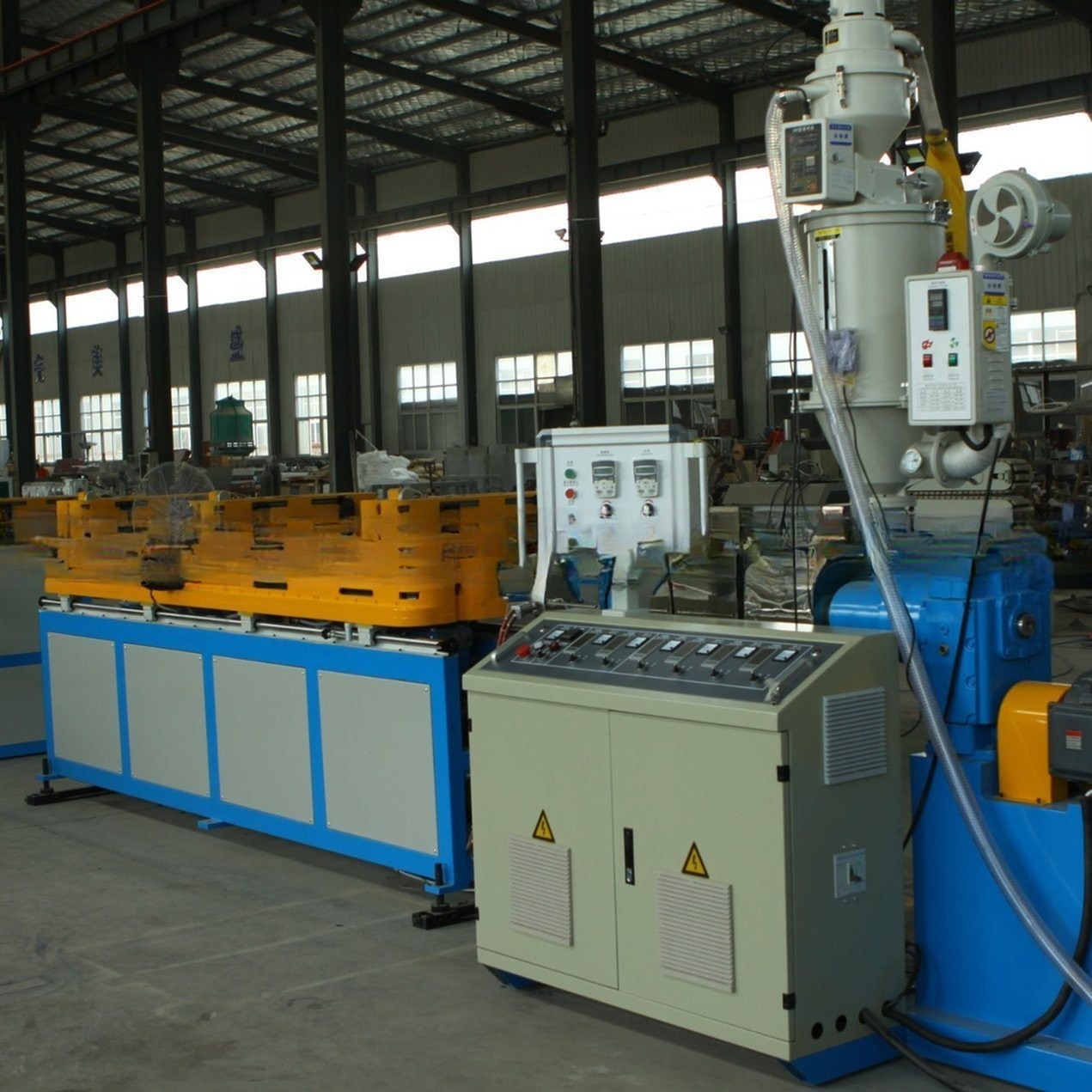

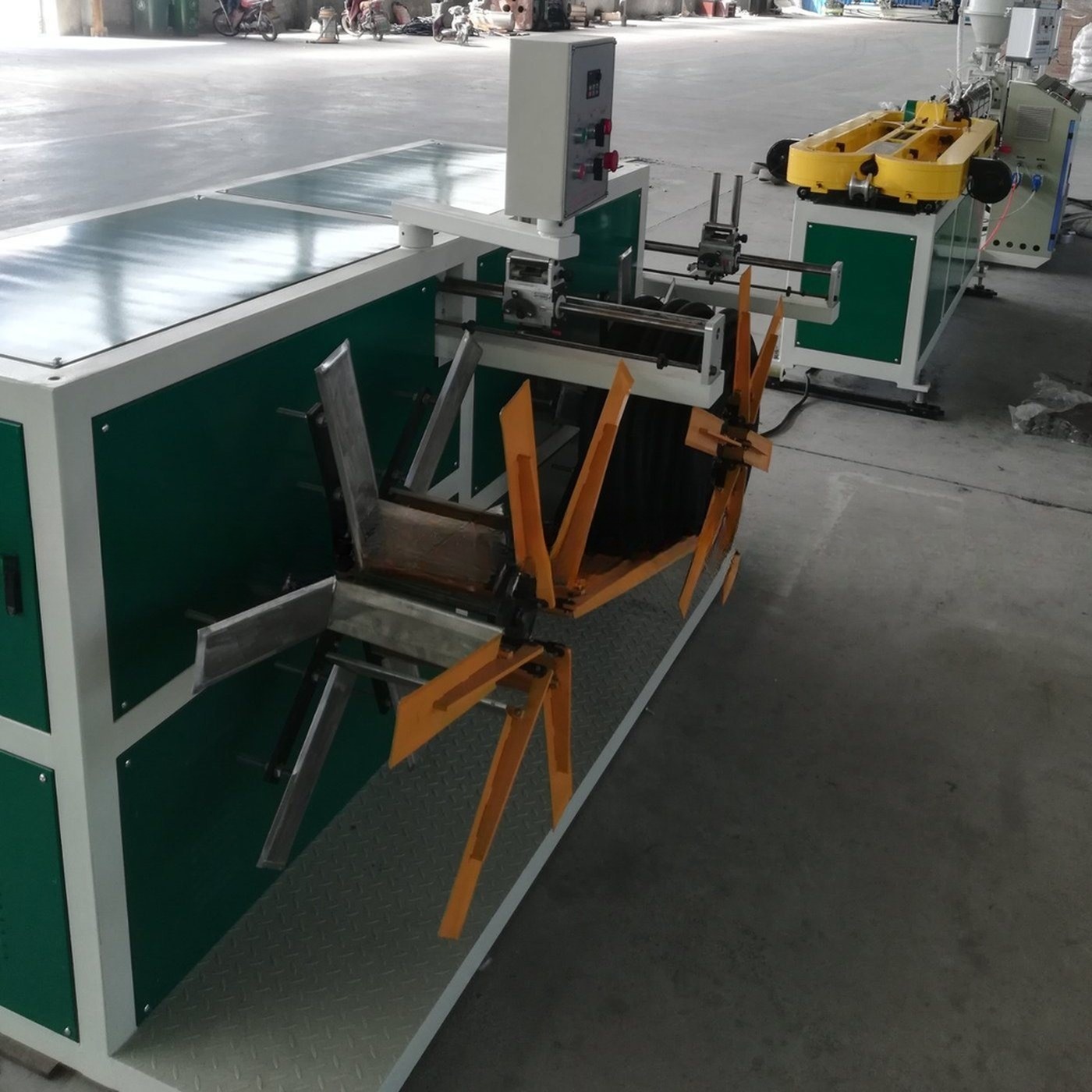

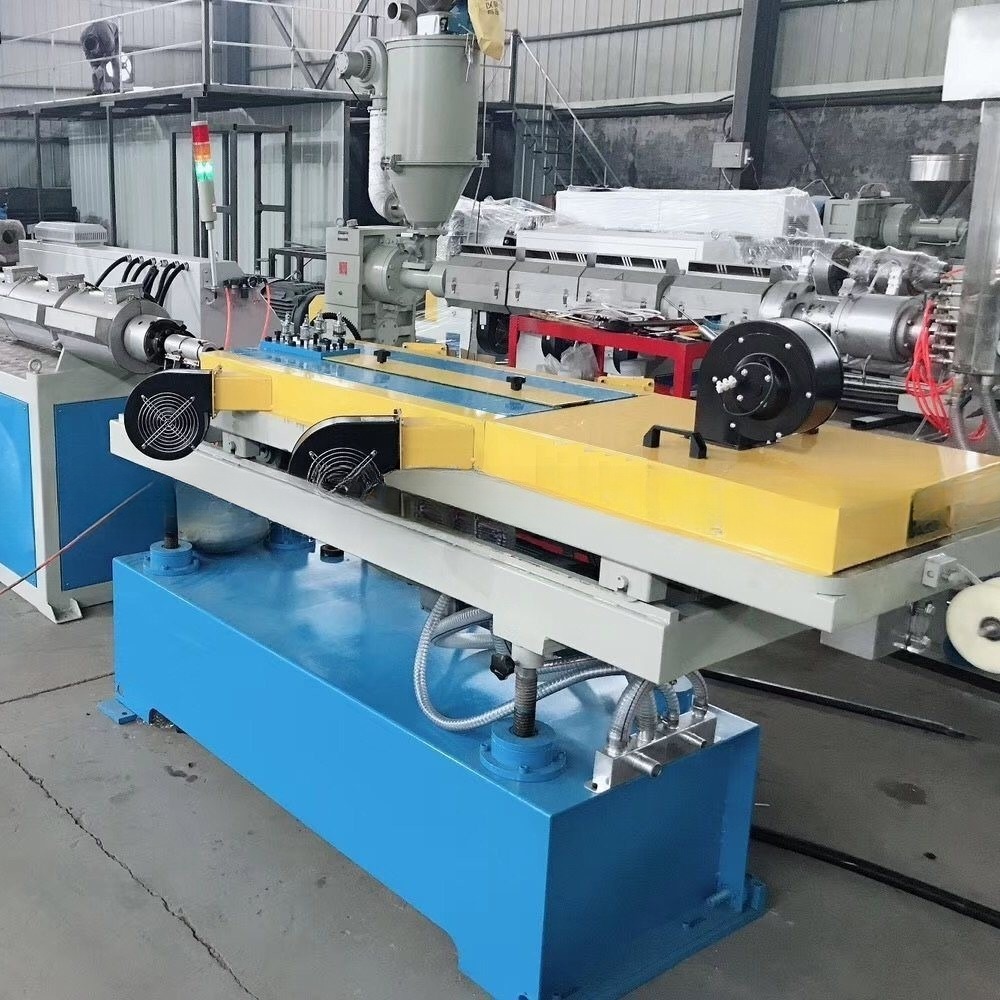

Machine details
40kg/H-80kg/H PVC Single Wall Corrugated Pipe Production Line 0

Our customer&exhibition

Packing
40kg/H-80kg/H PVC Single Wall Corrugated Pipe Production Line 8

Tag:

Place of Origin:	Shandong, China
Brand Name:	Changyue
Certification:	ISO9001
Document:	Product Brochure PDF

Packaging Details:	Export Film Packing / According To Customer
Delivery Time:	15 Days (1 - 1 Pieces) To Be Negotiated ( > 1 Pieces)
