Detail Information

Condition:	New	Plastic Processed:	PVC
Application:	PIPE	Screw Design:	Double-screw
Twin Screw Type:	Counter-rotating Conical Twin-screw	Screw Material:	40CrMoTi
Screw L/D Ratio:	22:1	Screw Speed (rpm):	40 Rpm
Showroom Location:	Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Brazil, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Romania, Bangladesh, So	Voltage:	220-415V
Power (kW):	75	Weight:	8 KG
Warranty:	1 Year	Key Selling Points:	MACHINE
Applicable Industries:	Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Construction Works , Energy & Mining	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	3 Years	Core Components:	Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox, Screw
Machinery Test Report:	Provided	Name:	Pvc Conduit Pipe Extrusion Machine
Raw Material:	PVC Resins+CaCo3	Final Product:	PVc Conduit Pipe
Inverter:	ABB / DELTA / SIEMENS	Motor:	WEG / SIEMENS
Temperature Controller:	Omron Japan	Extruder Type:	TWIN CONICAL SCRWE EXTRUDER
Pipe Diameter:	16- 63 MM
Highlight:	plastic pipe production line , plastic pipe extrusion line , plastic pipe extruder

Product Description

Products Description

1. Process flow:
PVC powder + additive → mixing → spiral auto loader → twin screw extruder → mould → vacuum calibration tank →

haul off machine →laser pinter →cutting machine → stacker or automatic belling machine

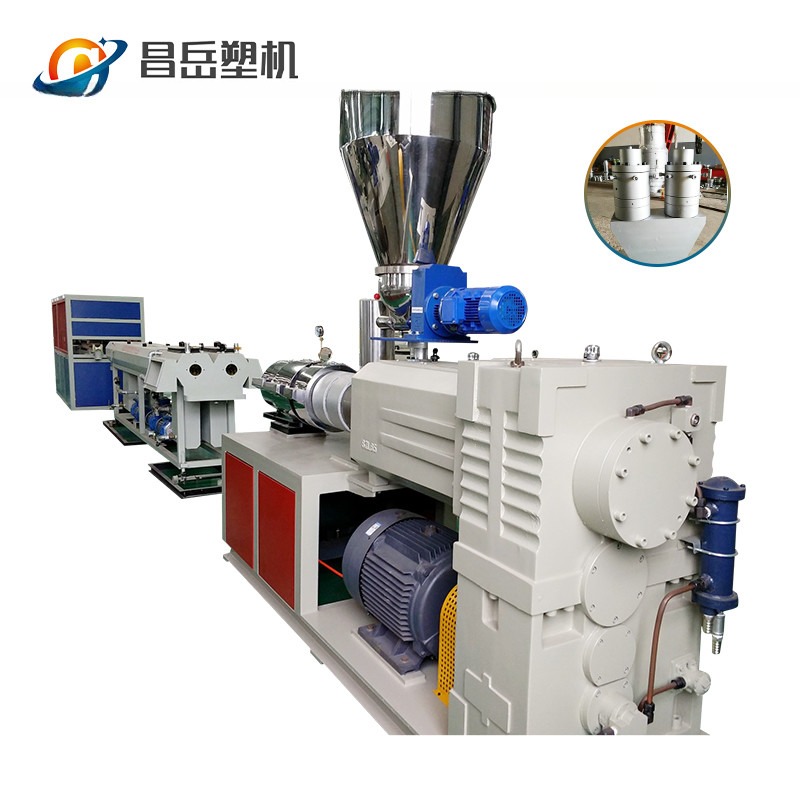

2.Conical twin screw extruder

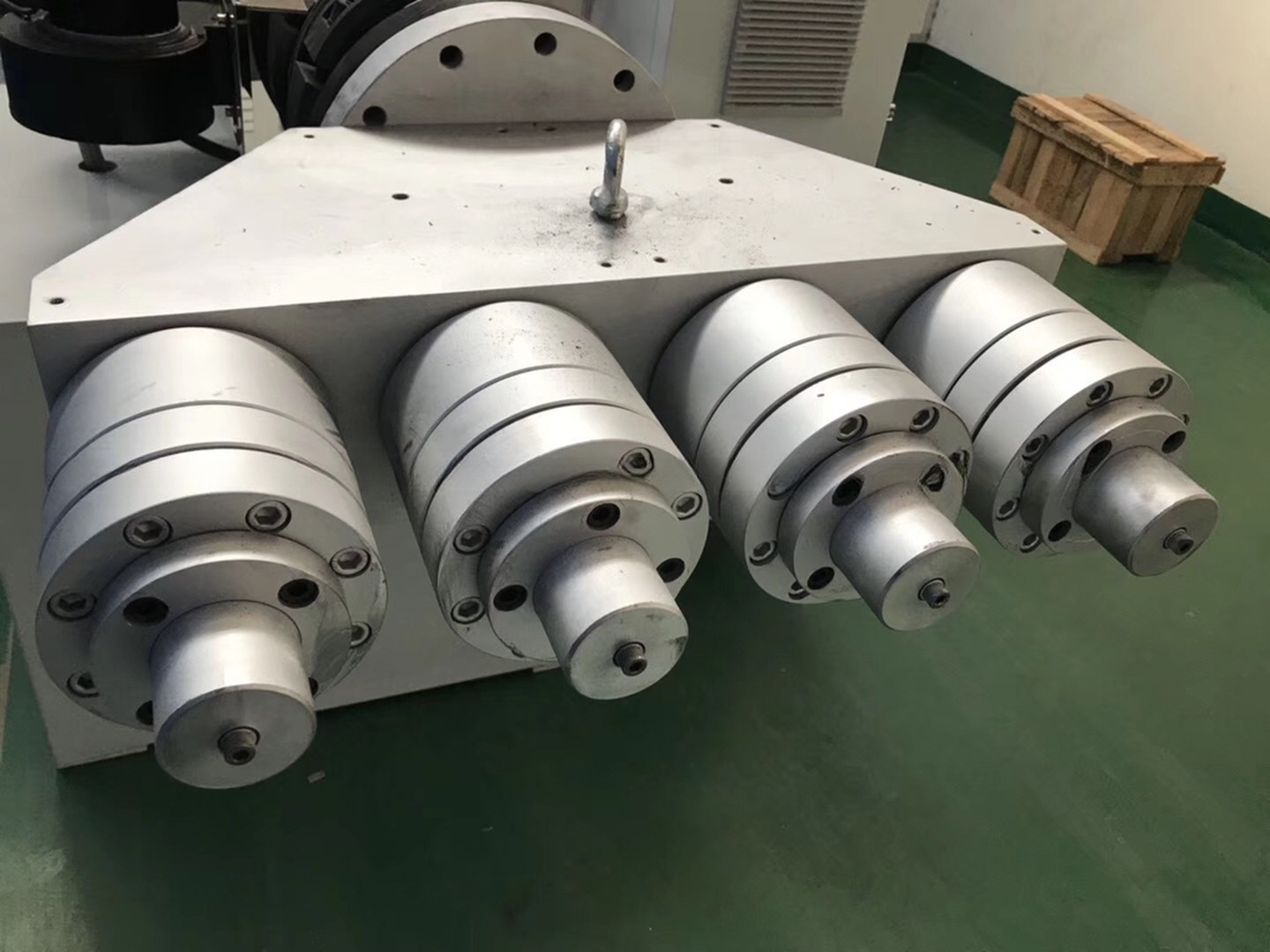

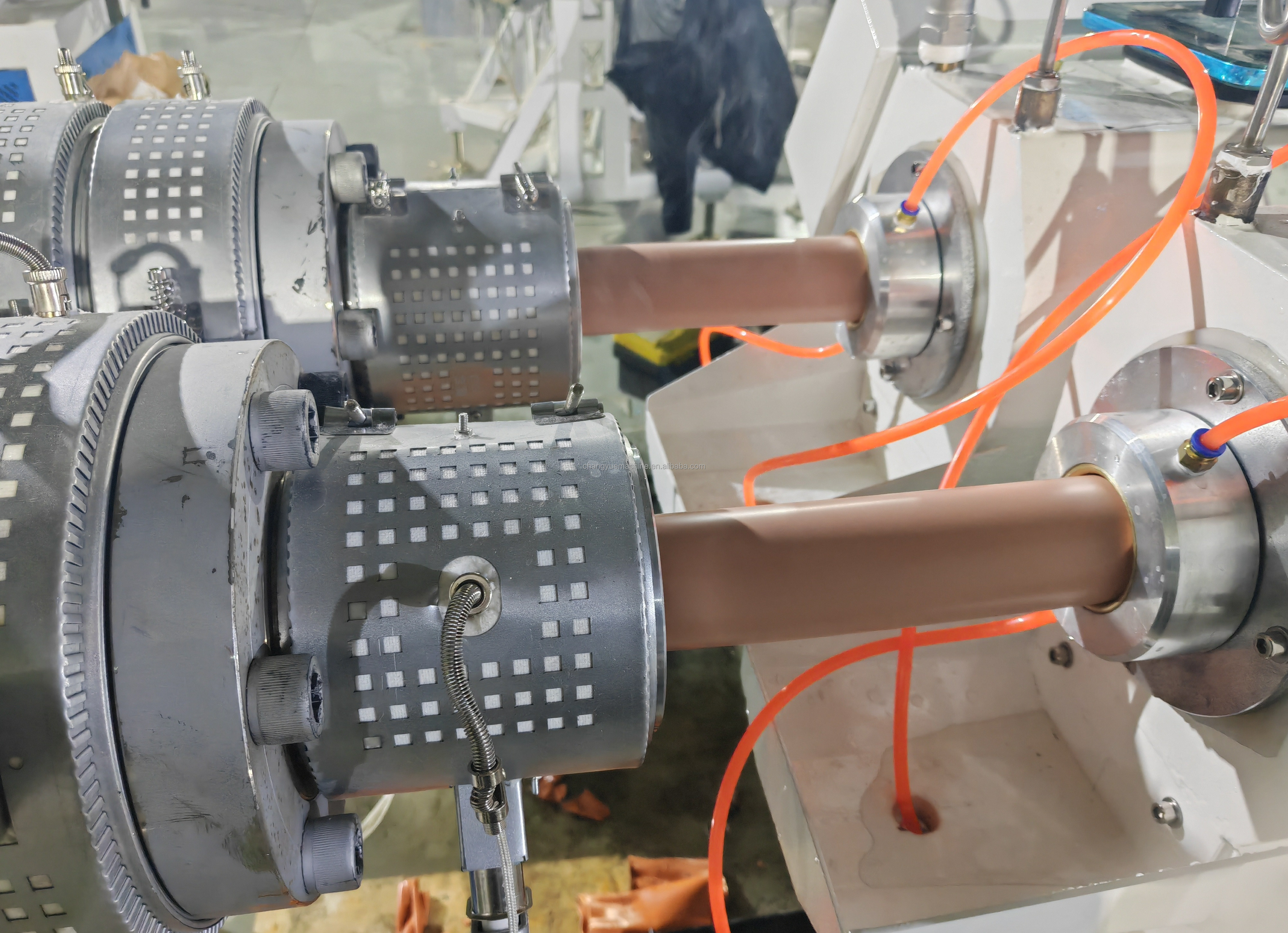

3.Die head. Due to the diameter, it can be single, double and four die head

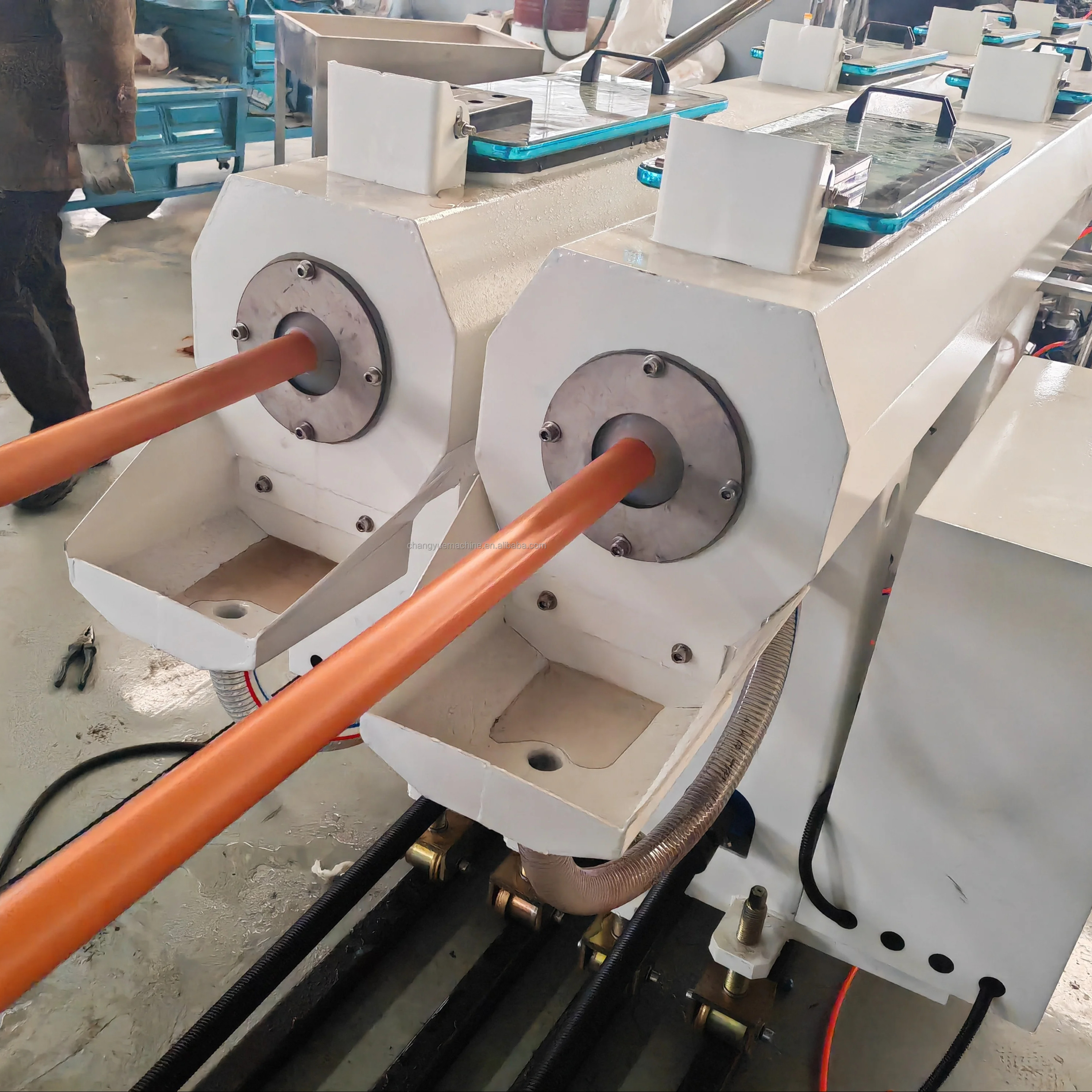

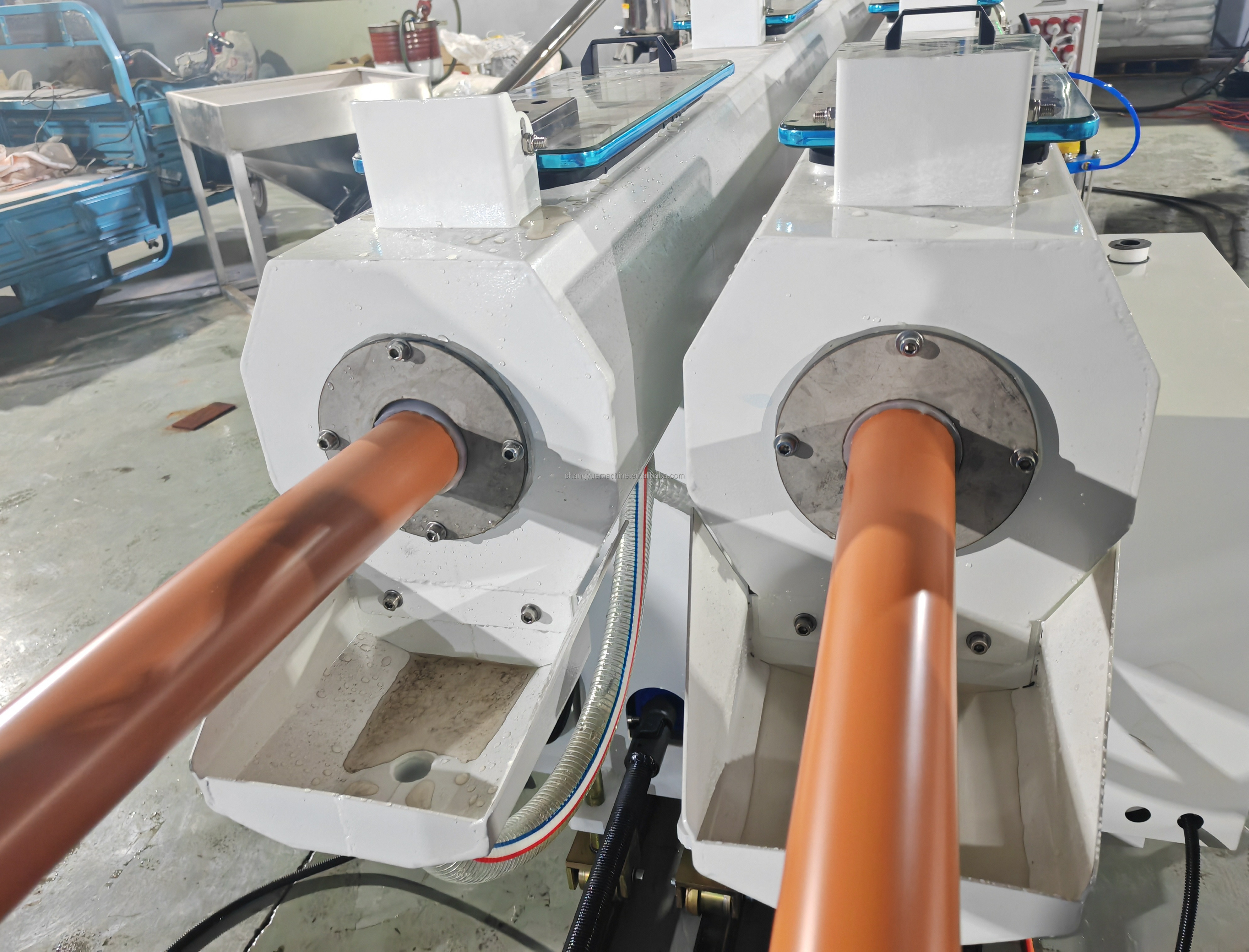

4.Vacuum tank: due to diameter, it can be designing of single, double vacuum chambers

5.Haul-offs: due to diameter, it can be designing of double, three, four, six, eight caterpillars

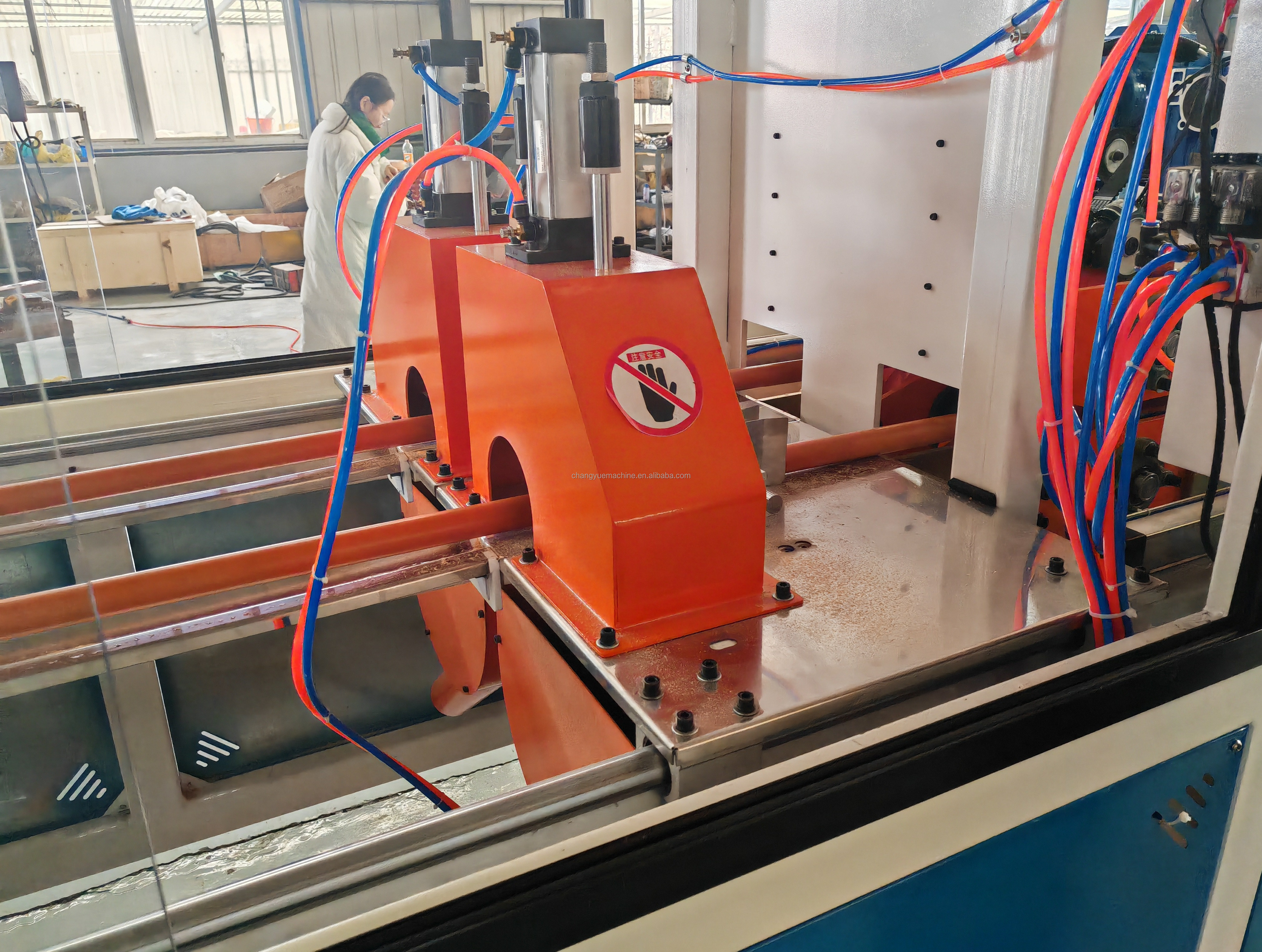

6.Cutter: due to diameter, it can be designing of saw cutter or planetary cutter

7.stacker or automatic belling machine

8. laser printer: print the company name or brand name on pipe

Product Paramenters

model	diameter range	extruder	main motor	output
CY-PVC 50 x 2	16-50 mm	51/105	22 kw	150 kg/h
CY- PVC -63	16-63	45/90	18.5 kw	80 kg/h
CY-PVC 110	50-110 mm	51/105	22 kw	150 kg/h
CY-PVC 160	63-160	65/132	37 kw	250 kg/h
CY-PVC 250	110-250 mm	80/156	55 kw	400 kg/h
CY-PVC 315	160-315 mm	80/156	75 kw	450 kg/h
CY-PVC 450	250 - 450 mm	92/188	90 kw	700 kg/h
CY-PVC 630	315-630	92/188	90 kw	700 kg/h

Details Images

Company Profile

our workshop

Certifications

Why Choose Us

1. Low cost
* All the machine ,we make it ourself to reduce the cost of our customer.

2. Genuine product with excellent quality
* We choose our material very strict.
* All the material come to our factory must pass the quality test
* Substandard goods are returned to the supplier.

3. Engerneers available to serve oversea

4. Quick delivery
* The company provide just in time delivery with its streamlined supply chain.

5. Cost saving
* Se take strong attention to every detail in the manufacturing process.
* The quality control in our factory is very strict.
* All defective semi-manufactures must be treated again or reject.
* All the machine must be checked out ,then delivered to our customer.
* All about that pushing up the price,but get good quality machine.
* What we want to do is give our customer a good quality product with stable working and long lived.

Tag:

Place of Origin:	Shandong, China
Brand Name:	Changyue
Document:	Product Brochure PDF

Price:	$28,000.00/pieces >=1 pieces
Packaging Details:	Export Film Packing / According To Customer
Delivery Time:	15 Days (1 - 1 Pieces) To Be Negotiated ( > 1 Pieces)
Supply Ability:	10 Acre/Acres per Month
